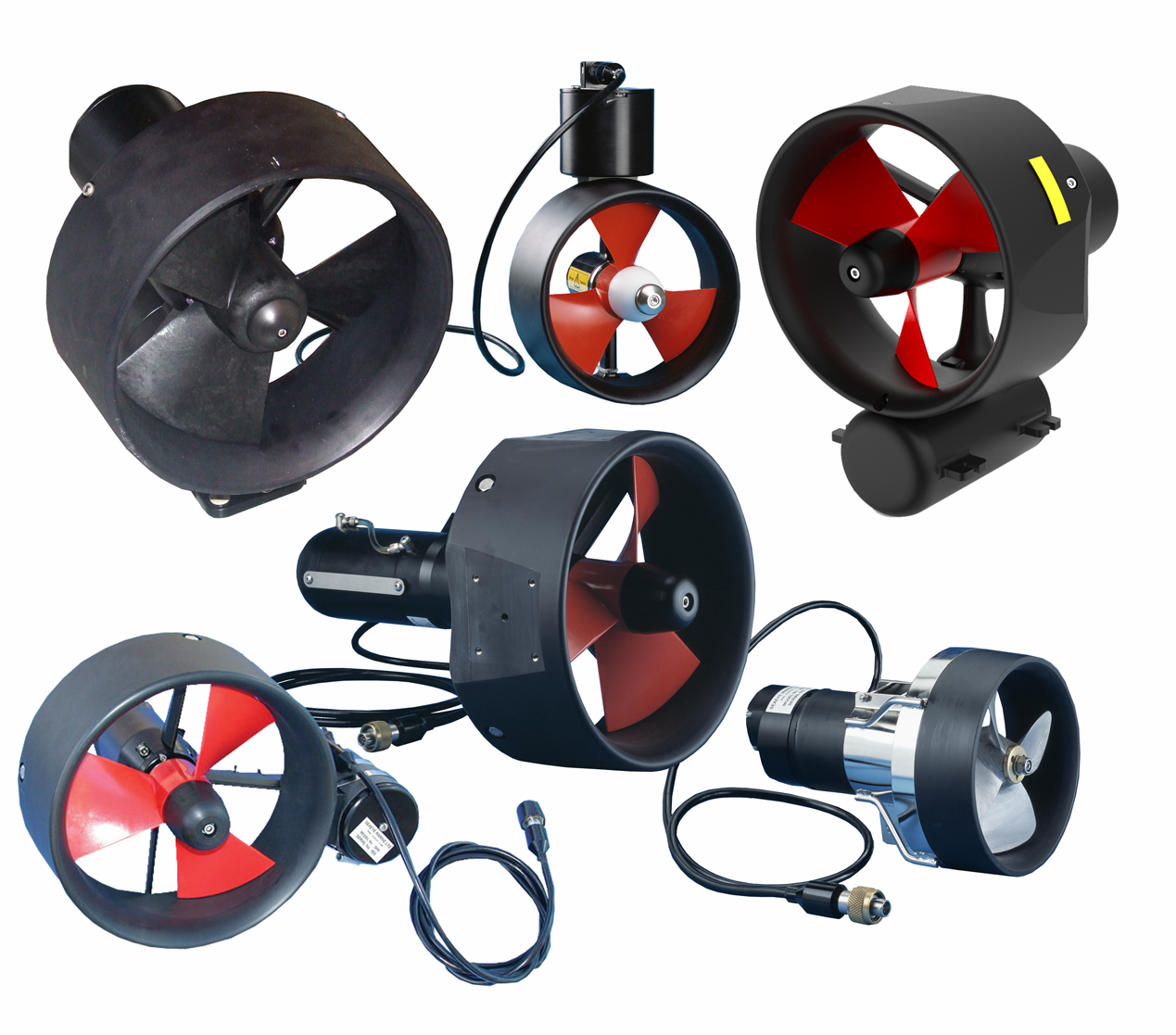

Thrusters

Our proven brushless DC motor technology and impressive developments in magnetics and materials sciences are integral to our range of thrusters.

Saab Seaeye’s thrusters are integrated into all manner of subsea applications from ROV, AUV and manned submarine propulsion, to prime mover applications such as pumps and cleaning brushes. With simplicity and versatility in mind, the range of thrusters includes numerous innovative features that make them stand out from similar thrusters for highly efficient performance, low weight, reliability and ease of maintenance.



Wide range of thruster configurations
Self-contained drive electronics within the housing
Proven DC brushless motor technology
Rapid response and reversal rate
Fouled propeller detector and reset circuitry
Under voltage protection of the electronics
Telemetry or PWM control
Integral pressure compensation

Specifications



SI-MCT01

SM4-M

SM5

SM6

SM7

SM8

SM9

Nominal voltage

48 VDC

250 VDC

250 VDC

250 VDC

500 VDC

500 VDC

250 VDC/500 VDC

Nominal current
(normal running)

6 A

4.5 A

4.5 A

4.5 A

5 A

5 A

9 A

Thrust

13 kgF

25 kgF

38 kgF

60 kgF

60 kgF

120 kgF

60 kgF @250VDC
100 kgF @500VDC

Weight in air
(inc prop & nozzle)

4.3 kg 3.7 kg 8kg 8kg 9 kg 26 kg 15 kg

Weight in seawater
(inc prop & nozzle)

2.5 kg

2.2 kg

4 kg

4 kg

4 kg

14 kg

8.5 kg

Depth rating

1,000 m
3,000 m

1,500 m
3,000 m

Up to
2,500 m

Up to
2,500 m

2,500 m
6,000 m

Up to
3,000 m

3,000 m

Control signal

RS485

PWM for
speed signal

PWM for
speed signal

PWM for
speed signal

PWM for
speed signal

RS485

RS485

Electronics
(reversible for direction control)

N/A

24 VDC
@
200 mA

24 VDC
@
200 mA

24 VDC
@
200 mA

24 VDC
@
200 mA

N/A

N/A

Connector

5 Way

7 Way

7 Way

7 Way

7 Way

5 Way

5 Way

Dimensions
(L x W)



355 x 393

Propeller diameter

178

152.4

254

254

243

305

254



alt

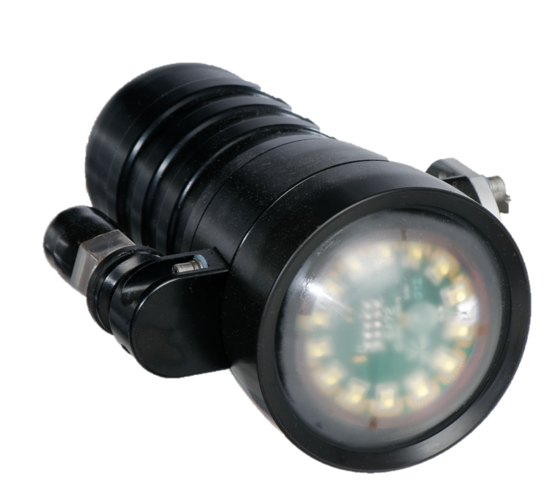

LED Lamps

Our advanced, compact LED lamps are designed to complement our successful robotic vehicles.

Made from 6082 grade aluminium, the lights are designed and manufactured to operate in the toughest conditions. With low power consumption (34 - 40 W), light weight, high brightness (3520 lumens) and a long life, these lights are ideal for the subsea environment. With a depth rating of 3,000 msw, these lights are made to fit a variety of vehicles and are compatible with existing Saab Seaeye vehicles in the field.

Low power (34 - 40 W)
Light weight
High brightness (3520 lumens)
Long life
Depth rating 3,000 msw (options to 6,000 msw)
Compatible with all Saab Seaeye vehicles


alt

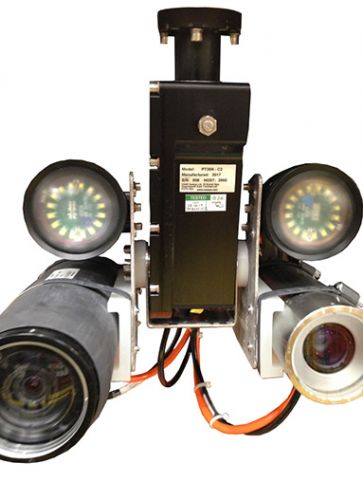

Pan and Tilt Units

The compact and robust Pan and Tilt Units (PT35N and PT35N-C2) are designed for the harsh subsea environment.

Ideal for ROV camera / light platforms and multi-beam sonars, the units are rated to 3,000m. The side entry lid provides easy access for maintenance and inspection. The Pan and Tilt incorporates common units for both the pan and tilt functions, making the units easier for maintenance and fault finding. 24 VDC brushless motors drive harmonic gear modules to provide a high output torque, combined with precise control and positional feedback in a compact design. Control is via RS485 (PT35N) or Castle 2 Protocol (PT35N-C2). The housing is oil filled with an integral compensator and includes a low oil level alarm.

Specifications

Depth rating

Full ocean depth

Torque at 1.5 A

15 Nm

Stall torque at 2.0 A

35 Nm

Maximum shaft rotation

Mechanically limited to 340 degrees

Backlash

30 minutes of arc

Shaft speed, no load

4 rpm (24 degrees per second)

Communication protocol

PT35N: RS485 1/2 Duplex  PT35N-C2: Castle 2 Protocol

Weight in air

6.5 kg

Weight in seawater

4.3 kg

Motor

24 VDC brushless

Connector

PT35N: 8-Pin Birns   PT35N-C2: DRM2BH7M

alt

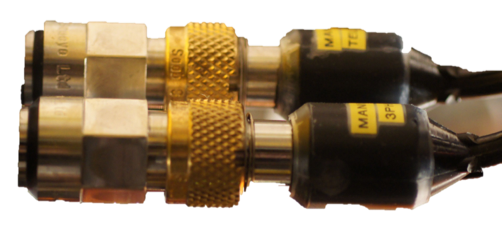

Metal Shell Connectors

Our comprehensive range of connectors and cable whips are specially designed for prolonged use in deep ocean environments to 5,000 metres and more.

Our connector receptacle shells, plug and mounting threads are made of high strength stainless steel and are corrosion resistant to salt spray, sea water, sand, mud, mineralised or demineralised water and hydrocarbons etc.

Watertightness and depth pressure rating have been given high priority during the design of the connectors and cable whips.
