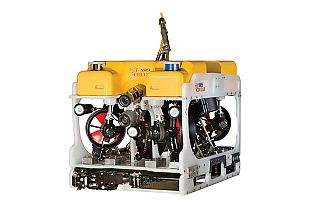

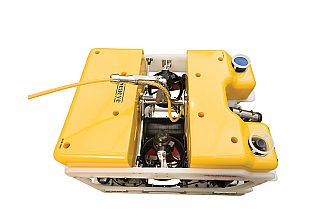

Cougar-XT Compact

The shallow water inspection vehicle with outstanding current handling capability.

Data Sheet

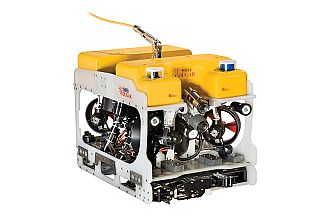

The Cougar-XT Compact, depth rated to 300m, is the shallow water version of the Cougar-XT. An extremely powerful vehicle, the Cougar-XT Compact is ideal for inspection applications where strong tidal currents are experienced.

The smaller chassis significantly reduces drag which, in combination with a high-performance thruster arrangement and a small diameter tether, offers unrivalled performance for its size and class.

Outstanding performance

Shallow water inspection vehicle with proven handling capabilities in strong currents and in tight spaces.



Compact

Low profile and lightweight designed to reduce drag and minimise the effect of current.

Wide choice of tooling

Selection of tooling options designed for easy integration and to deliver results for any shallow water project.

Cougar-XT Compact Overview
  • Surface Power Supply Unit and Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container. An additional tooling power supply option is available.

  • Surface Equipment includes Hand Control Unit, keyboard and two colour monitors. An additional hand control unit is available for systems fitted with a manipulator skid.

  • Cabin Junction Box for connections between the surface and subsea. Including Twisted Pair connection for data and video transmission. Fibre Optic MUX upgrades available.

  • Operated as a free swimming ROV for depths up to 300 m.

  • ROV rated to 300 m fitted with four horizontal thrusters and two vertical thrusters supplied with 500 Volts DC, electronics pod, four LED lights, two high resolution cameras, a compass and a depth sensor for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted.

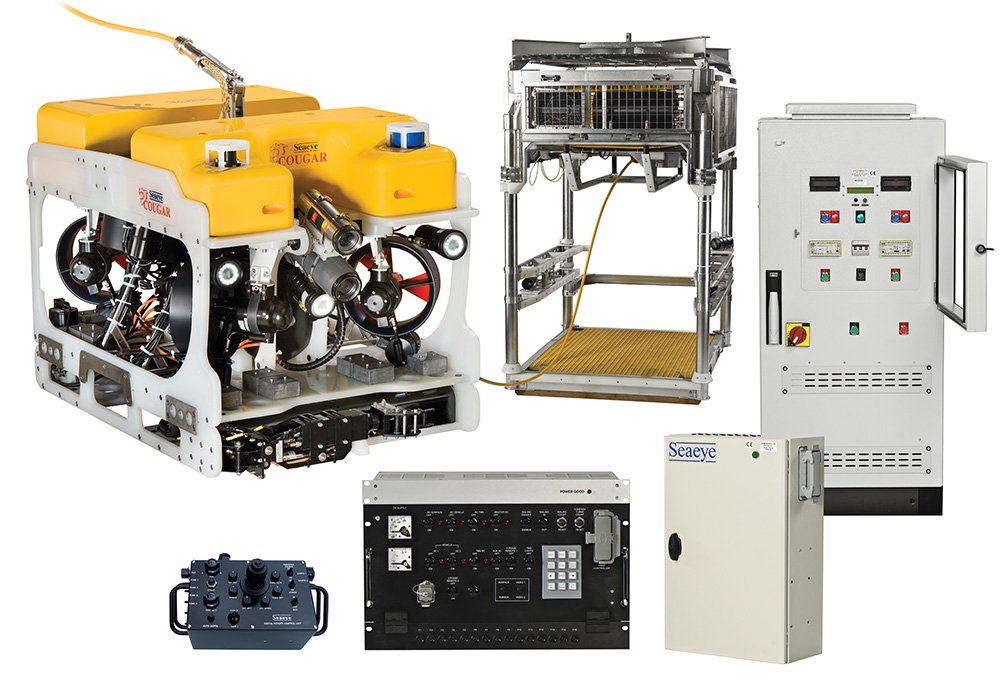

CougarXTCmontage

Technical Specifications
Specification
Cougar-XT Compact

Depth Rating (msw)

 300

Dimensions



Length (mm)

 1300

Height (mm)

 784

Width (mm)

 900

Weight in air (kg)

 270

Payload (kg)

 60

Thrust



Forward (kgf)

 170

Lateral (kgf)

 120

Vertical (kgf)

 110

Speed (knots)

 3.5

Power



Power input phases

 3

Voltage (VAC)

 380-480

Option

 690

Frequency (Hz)

 50-60

Battery Capacity (kWh)

 N/A

Endurance (Hour)

 N/A

Options, Tools and Accessories

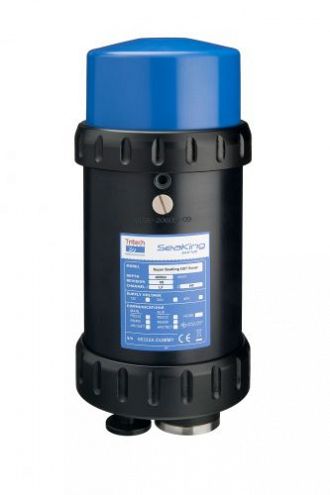

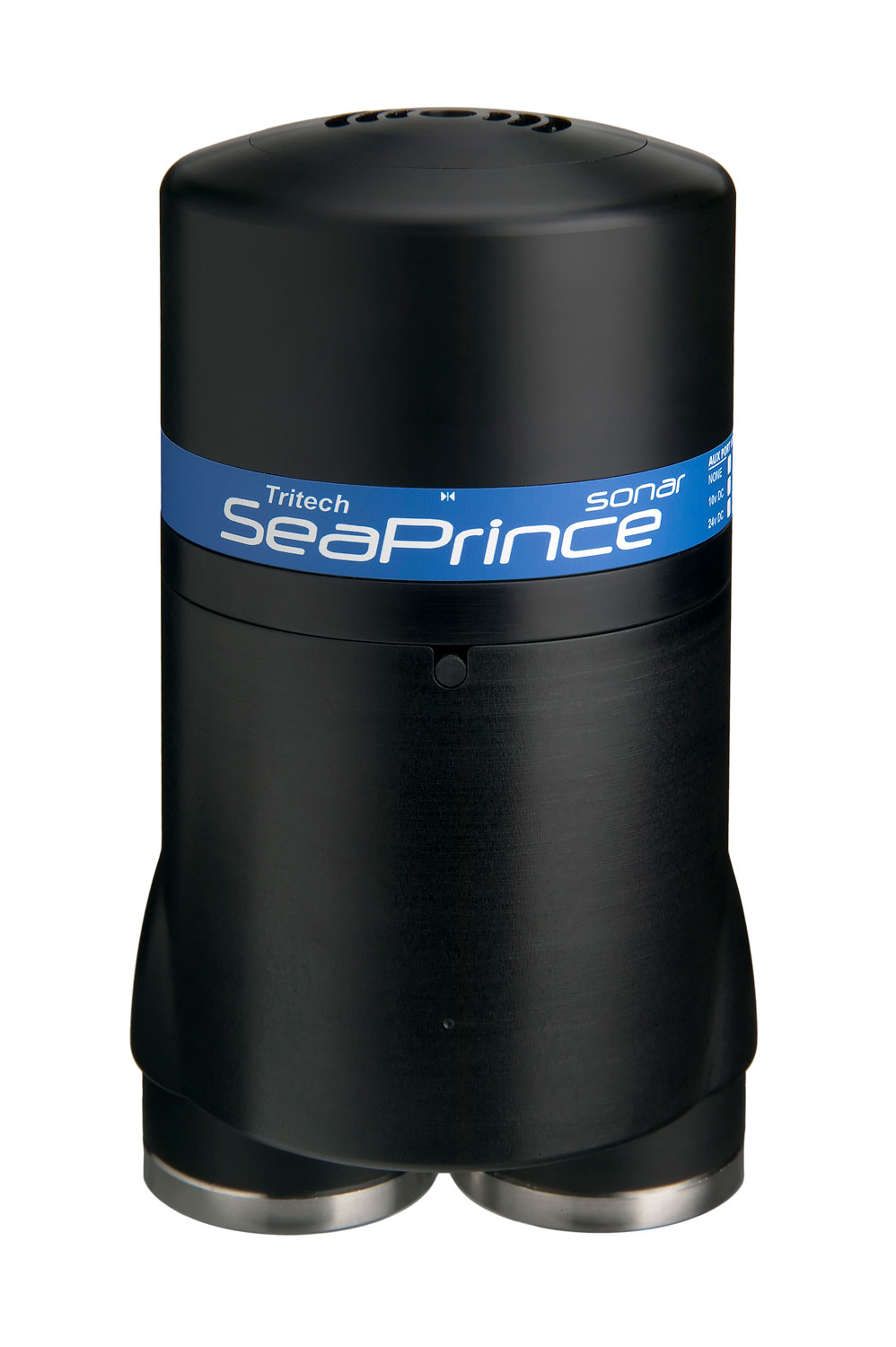

Scanning Sonar

Scanning Sonar options with an integration kit and surface equipment.

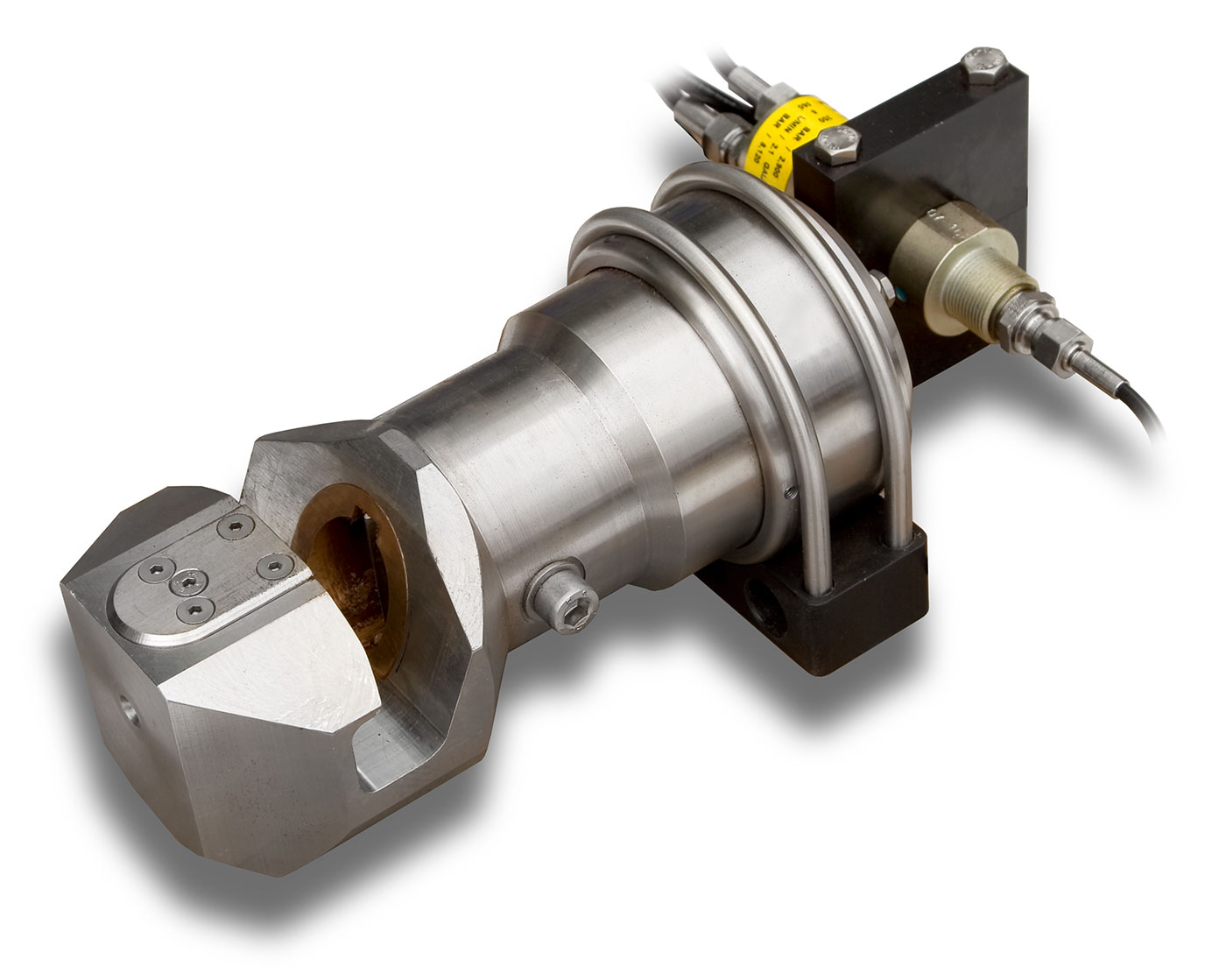

HLK-33800 Cutter

Compact cutter for cutting 25 mm diameter steel wire rope or 12 mm diameter steel bar.

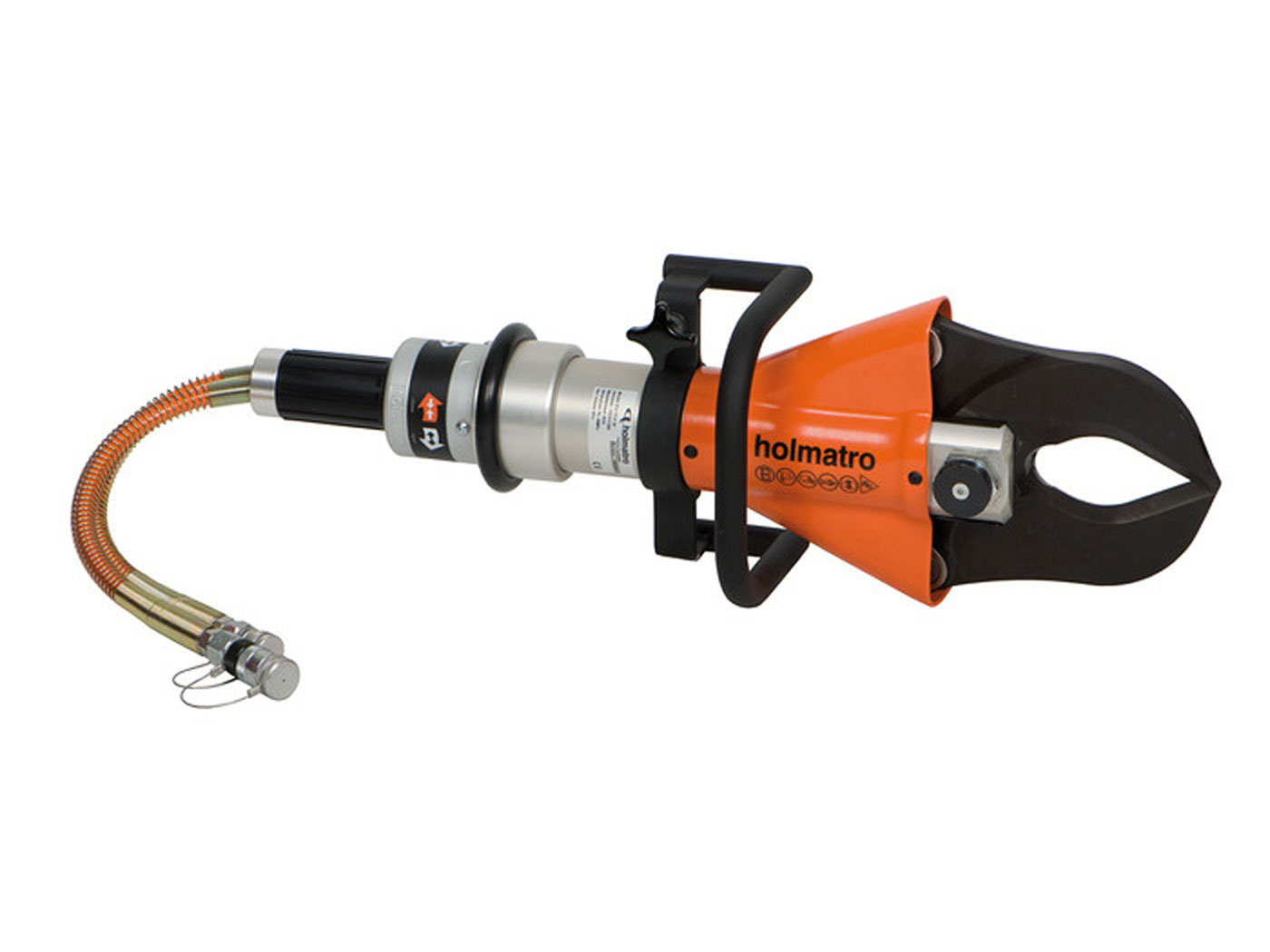

Holmatro Cutter

Holmatro Cutter with jaws opening to 144 mm. Requires deep wall tooling skid, additional buoyancy, tooling selector valve, a three-phase tooling PSU and a 4kW HPU.

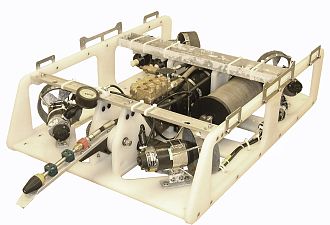

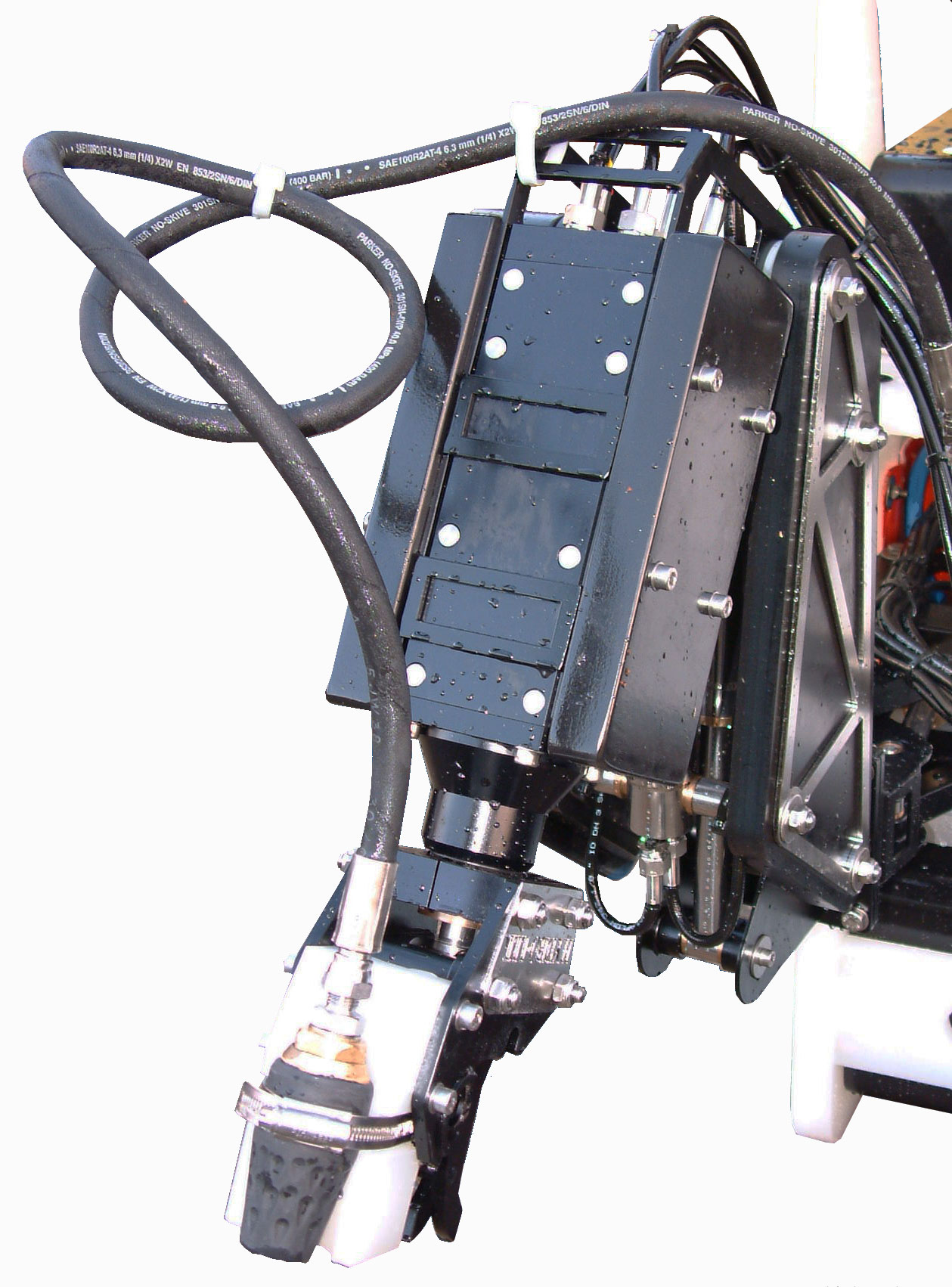

Water Jet Skid

Water Jet System for cleaning operations. Requires three-phase, 4.5 kW power supply unit.

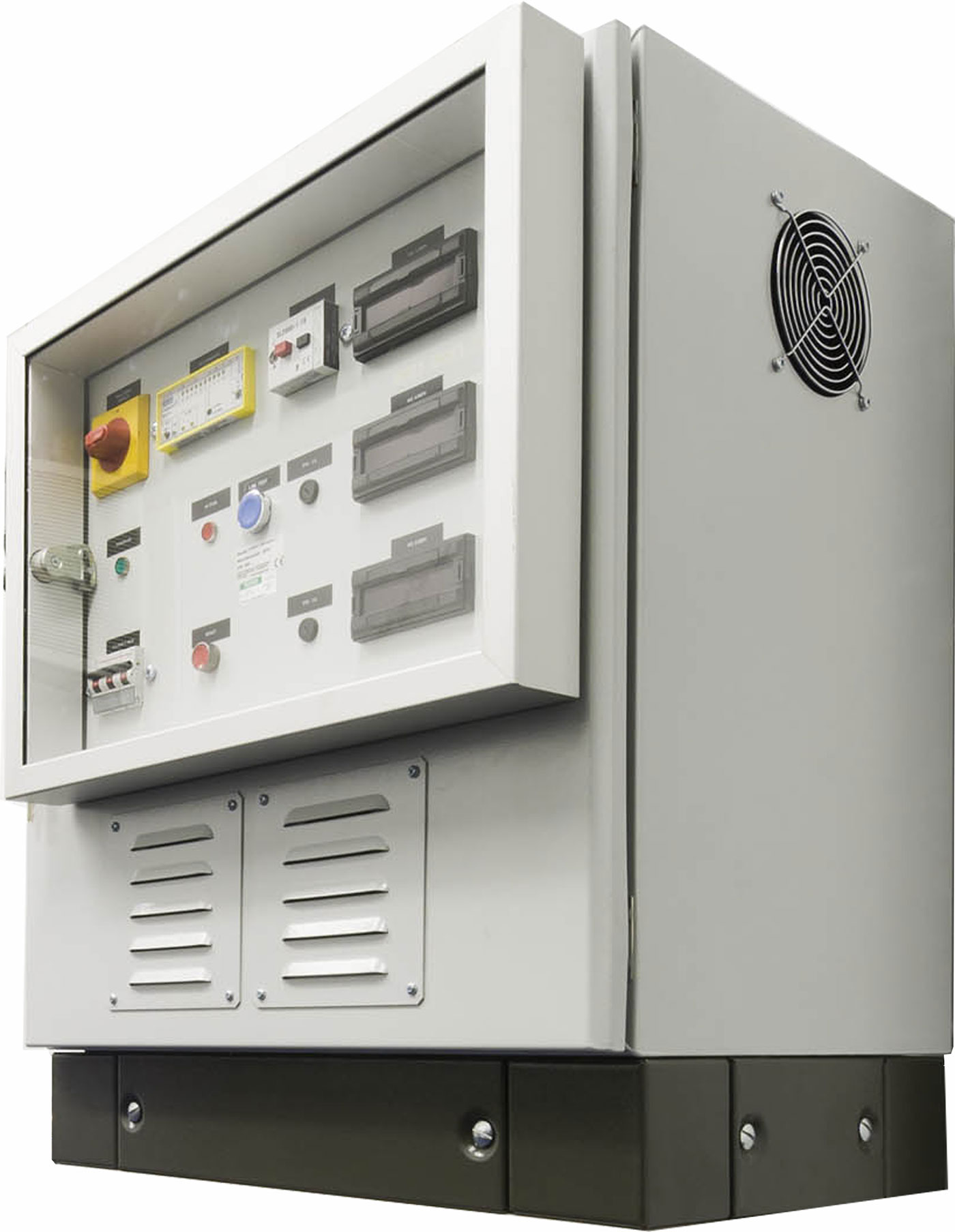

9kW Tooling PSU

Additional three-phase power supply unit used to power tooling options.

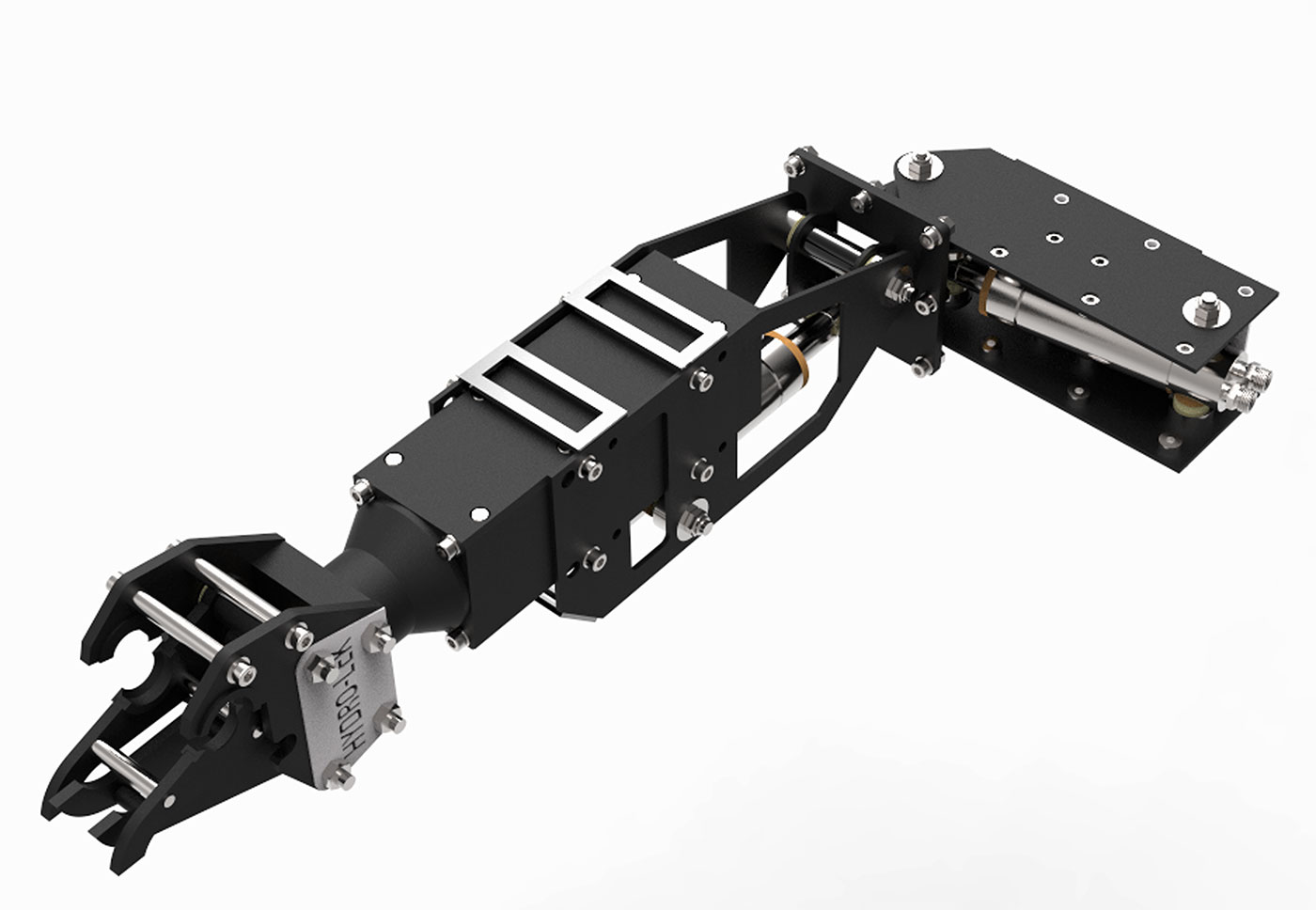

Cougar XT Compact Manipulator

Four-function manipulator system fitted with quick disconnect fittings to switch between the cleaning brush and the anvil cutter. Manipulator camera options available. (HLK-4200)

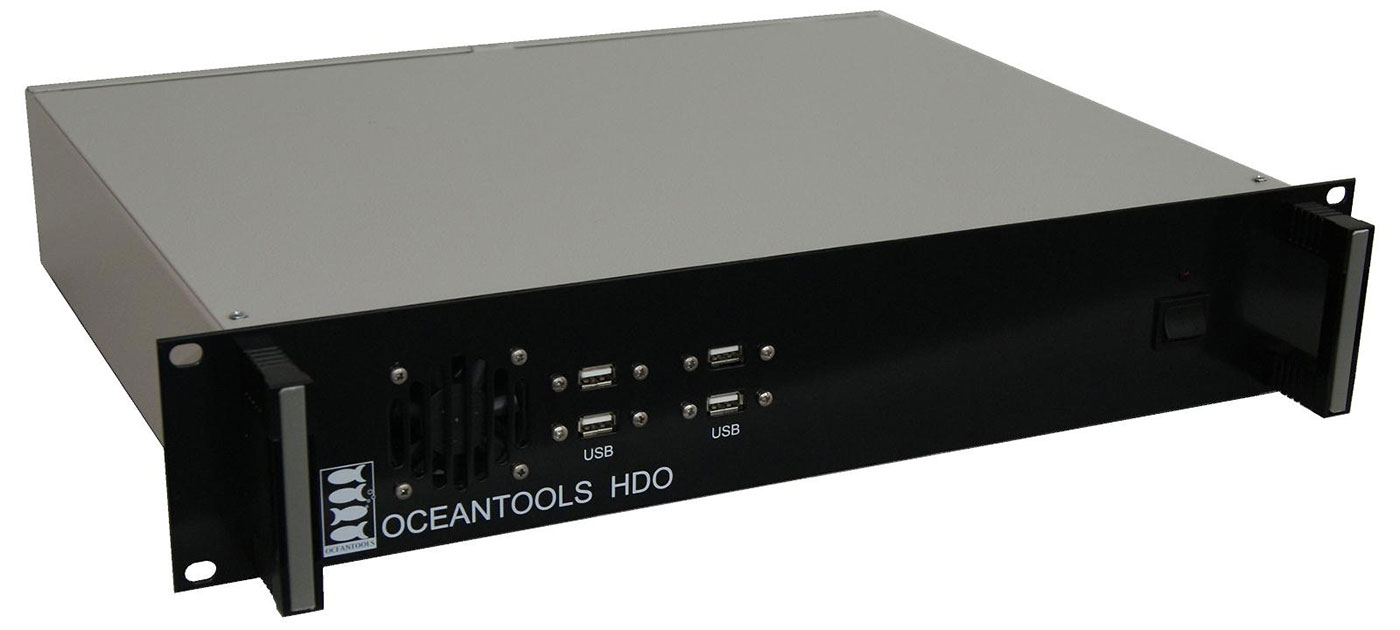

Video Recording System

Control cabin options include video recording unit, video matrix switcher, communications system and high-back pilot seat.

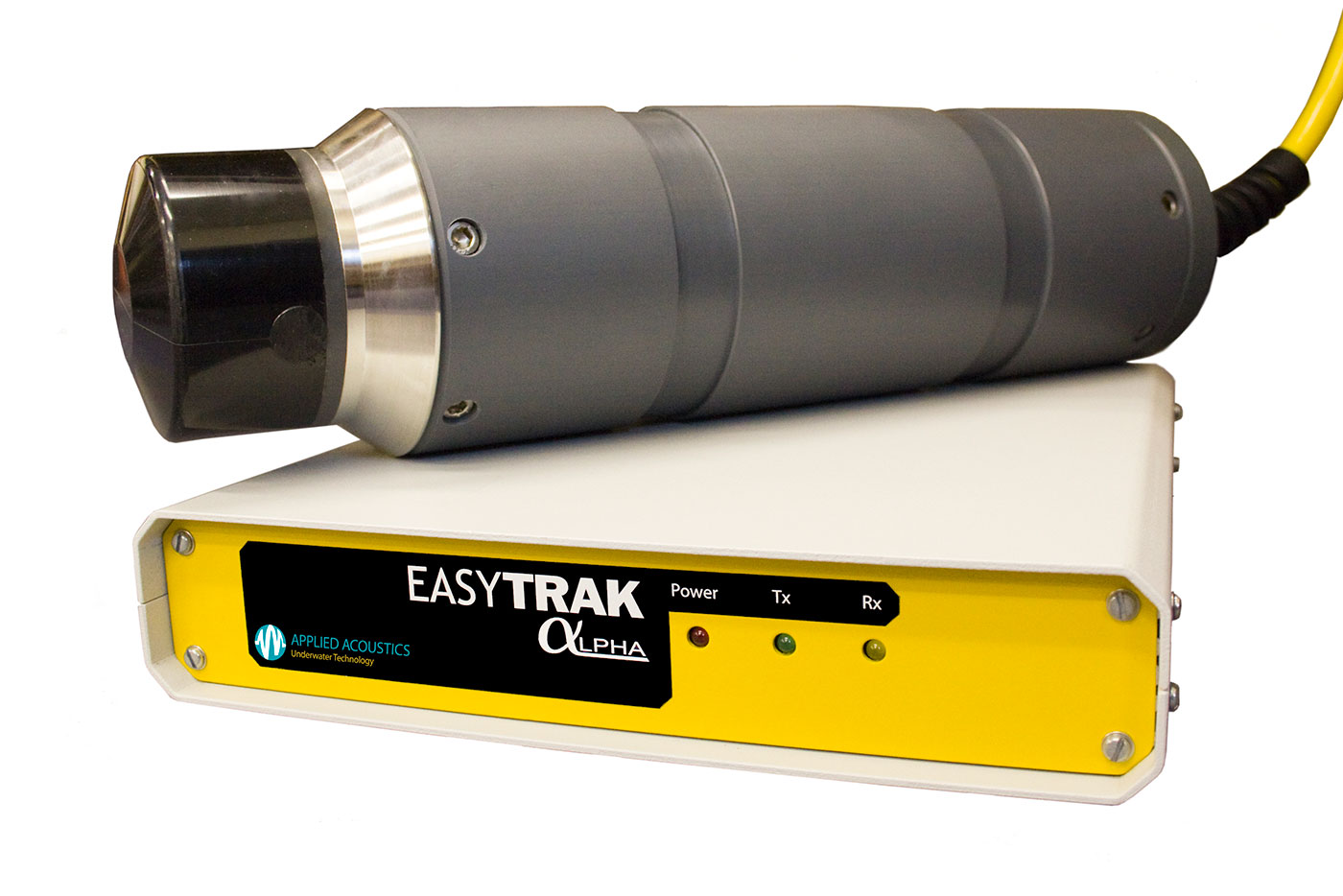

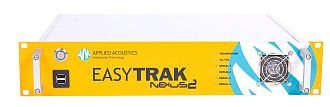

Acoustic Tracking System

Acoustic tracking system to calculate position of vehicle fitted with an acoustic beacon.

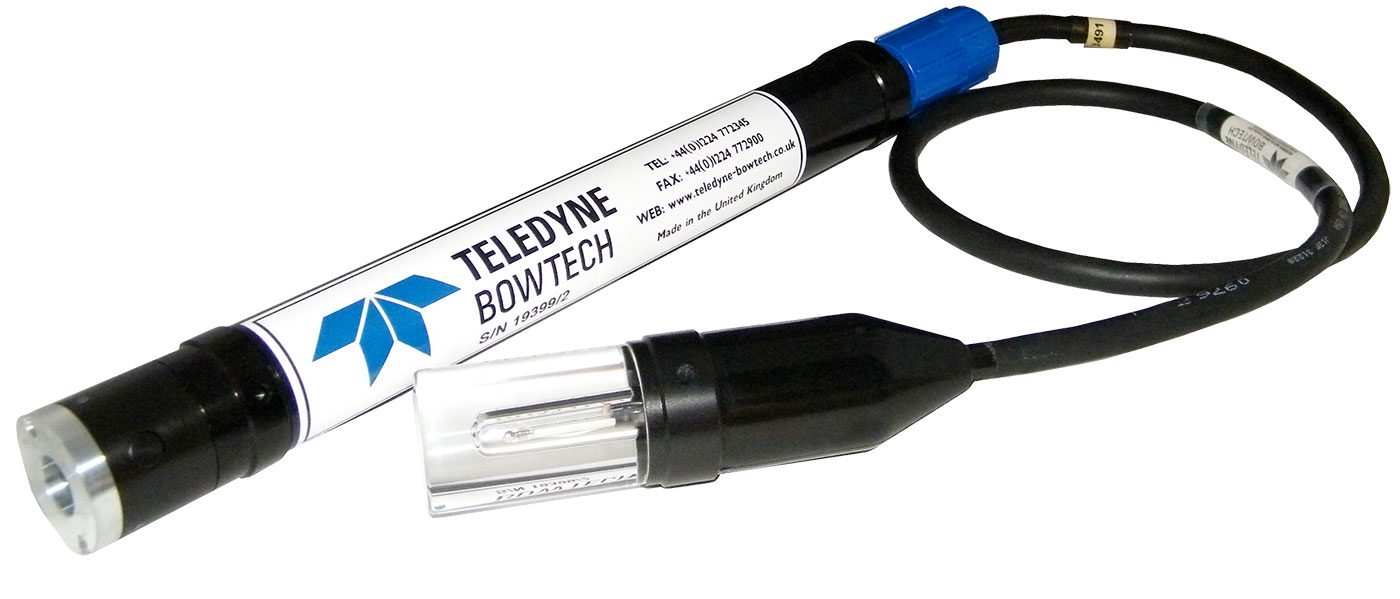

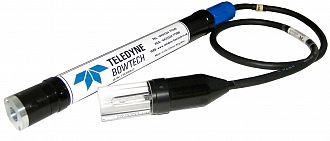

Strobe

Battery-operated, Xenon emergency strobe used to locate vehicle. (ST6K)

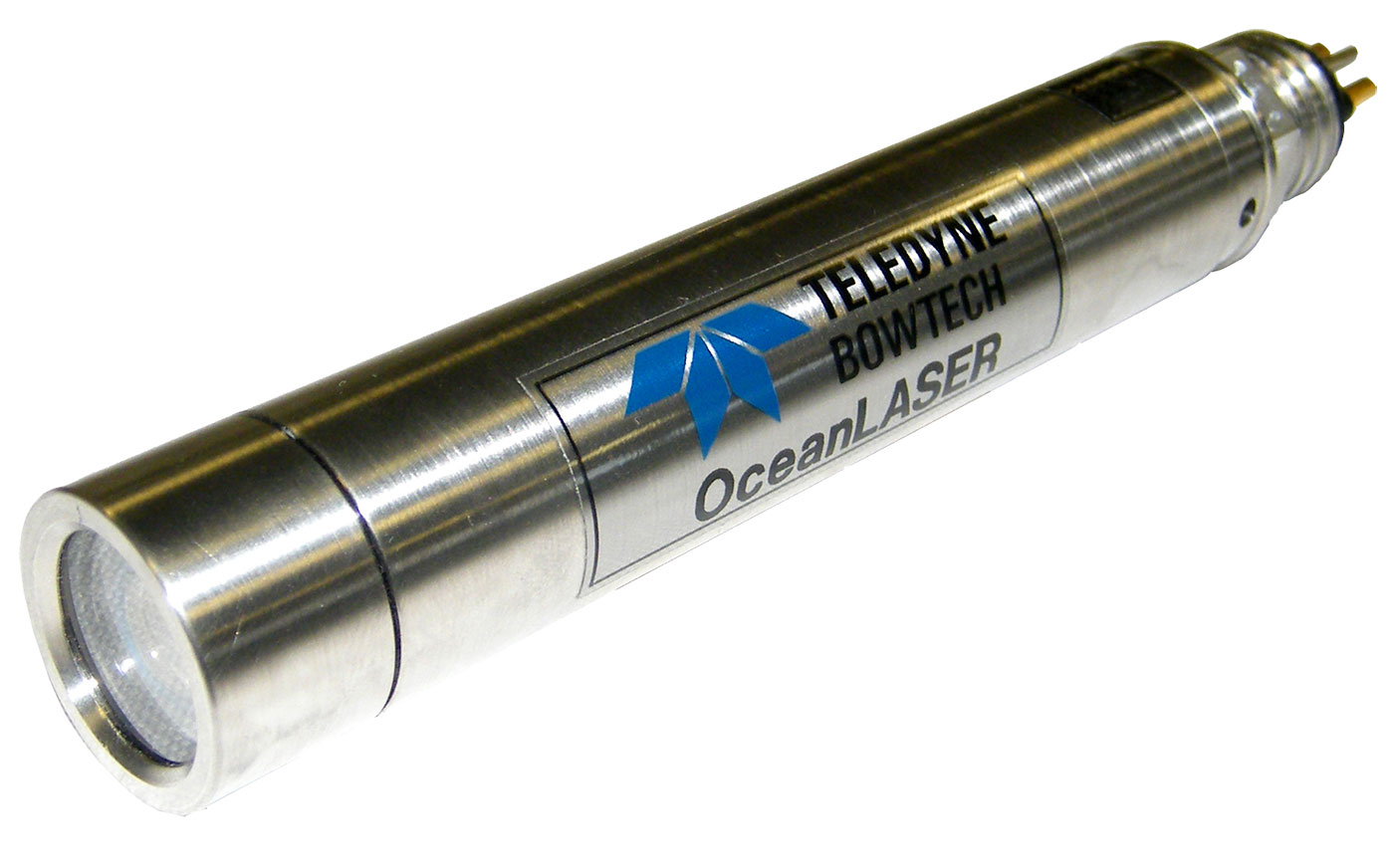

Laser

Laser options for video survey.

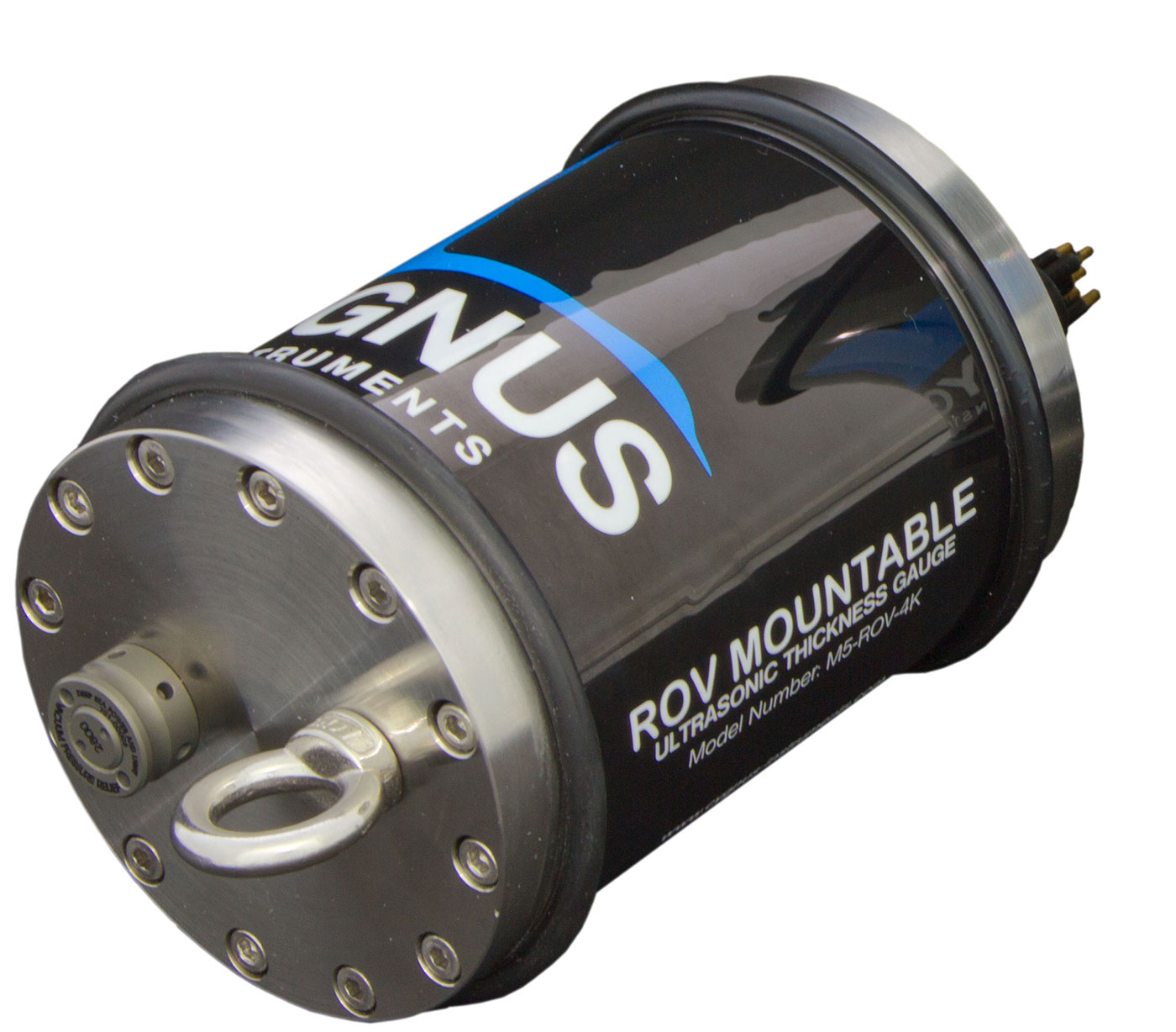

Ultrasonic Thickness Gauge

Ultrasonic thickness gauge to determine the level of corrosion present in a structure.

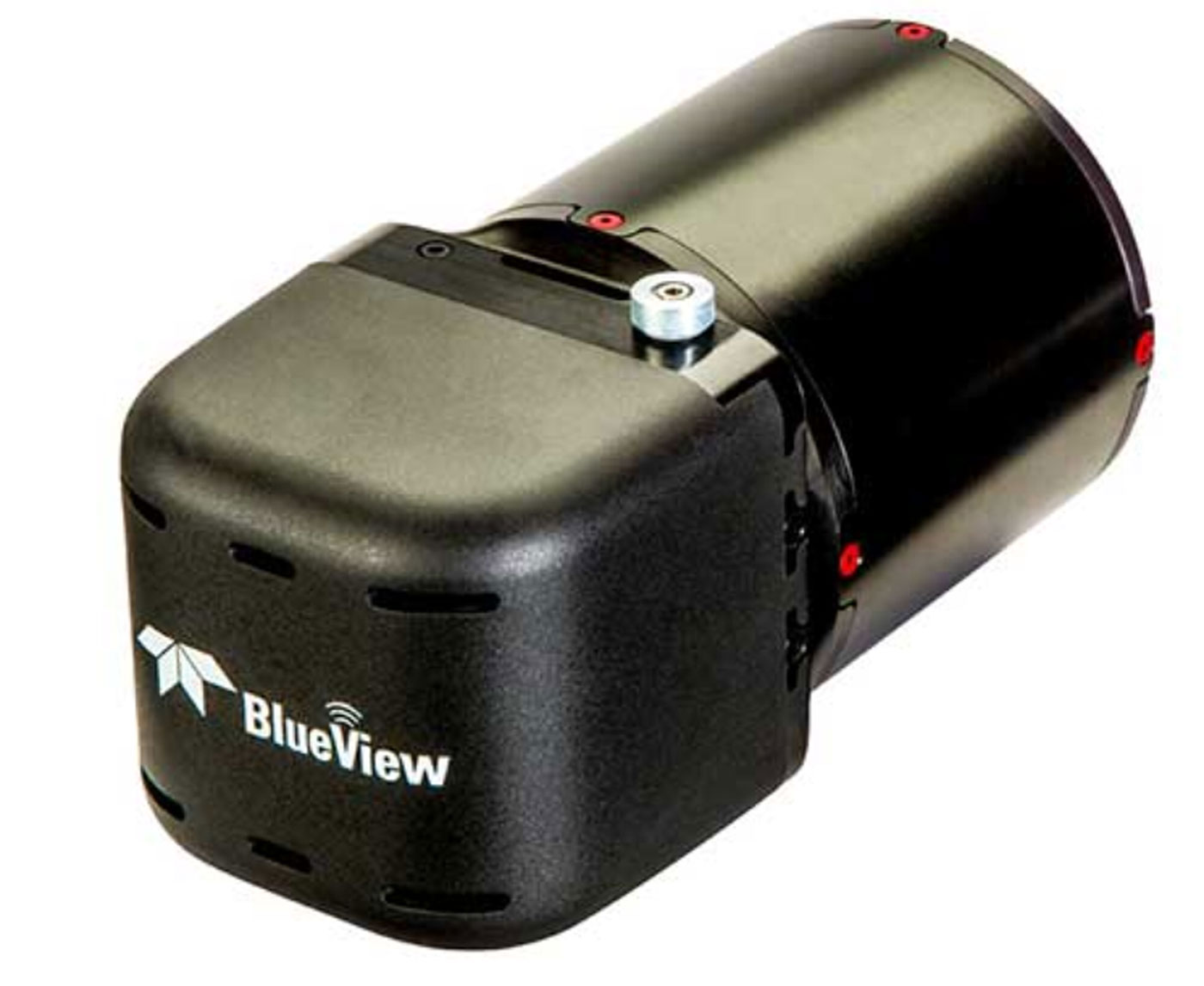

Multibeam Sonar

Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.

Bathymetric System

Bathymetric system with depth sensor and altimeter. Ethernet options available.

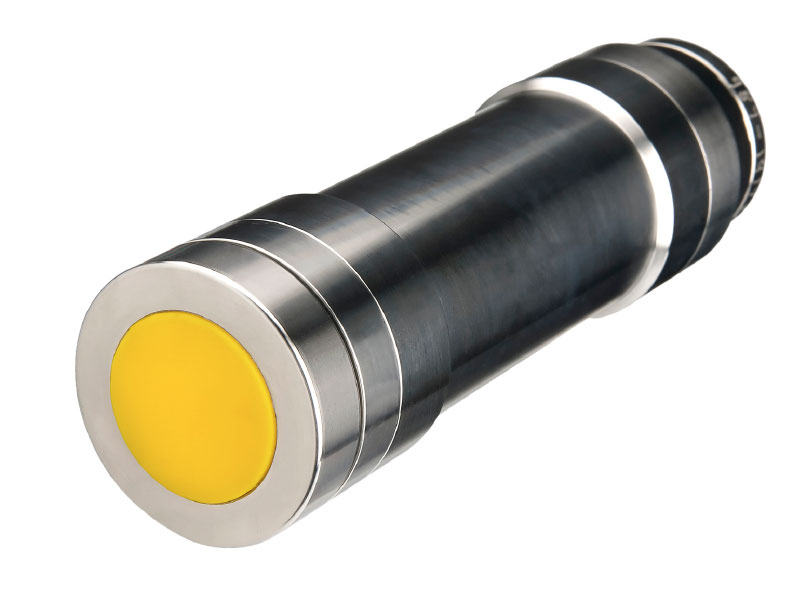

Altimeter

Altimeter used to measure the altitude of vehicle above sea floor. Auto altitude option available. (PA200)

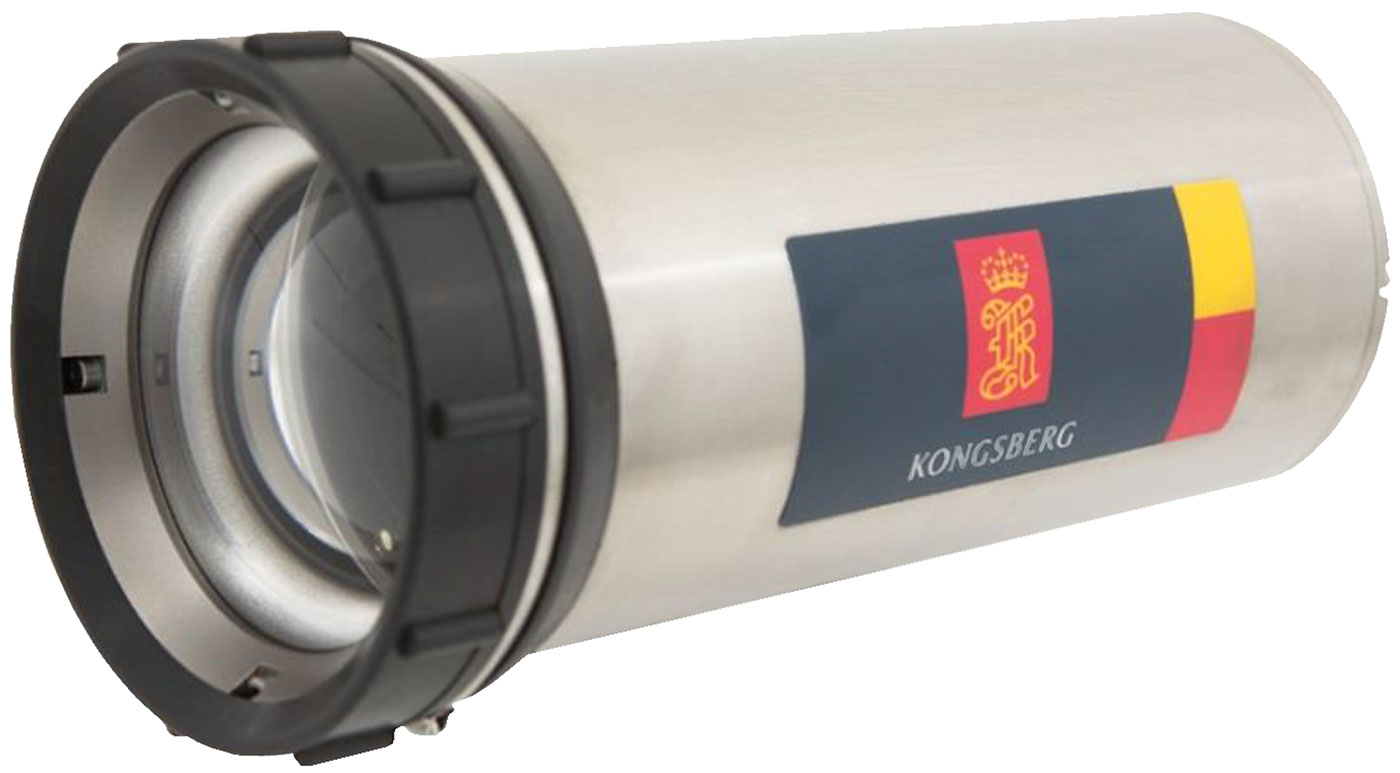

HD Camera

High Definition (HD) camera for vehicle. (OE14-502)

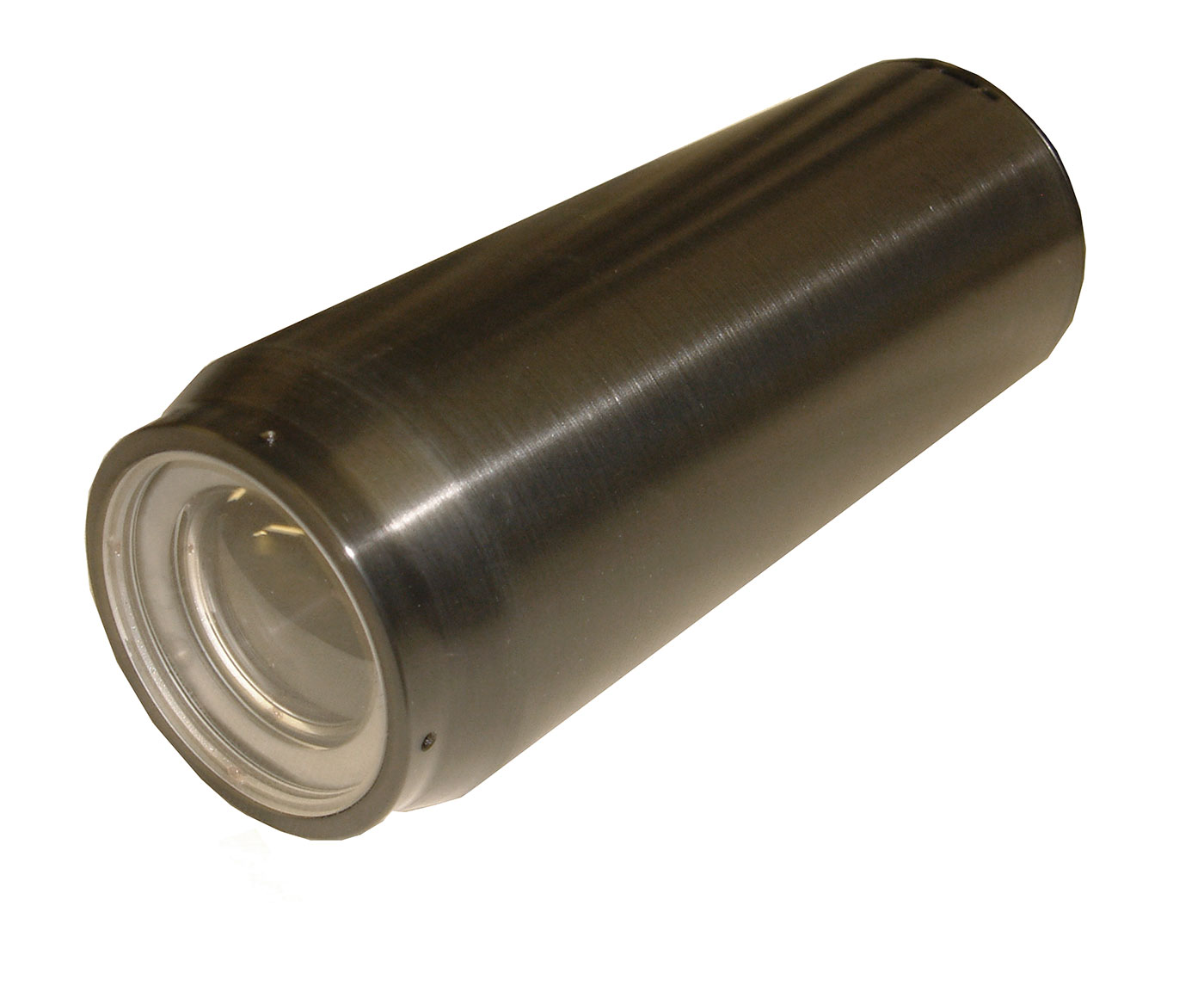

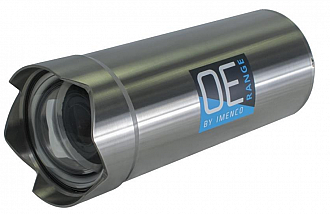

Camera

High resolution colour or monochrome cameras fitted to either the front of the vehicle on tilt platform or on bracket at rear of vehicle. (CAM04)

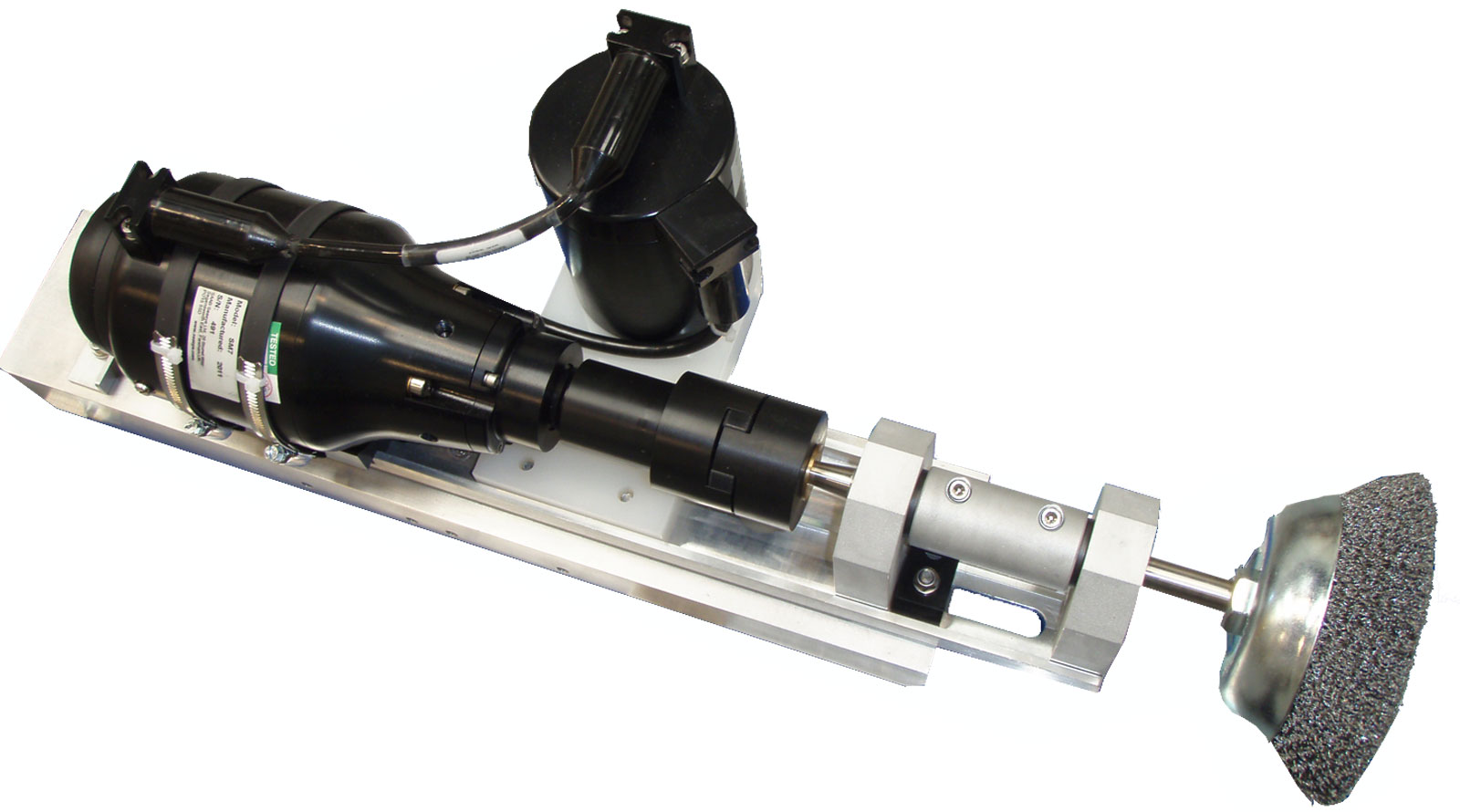

SM7 Cleaning Brush

Cleaning brush incorporating a heavy duty brush plus an SM7 thruster motor.

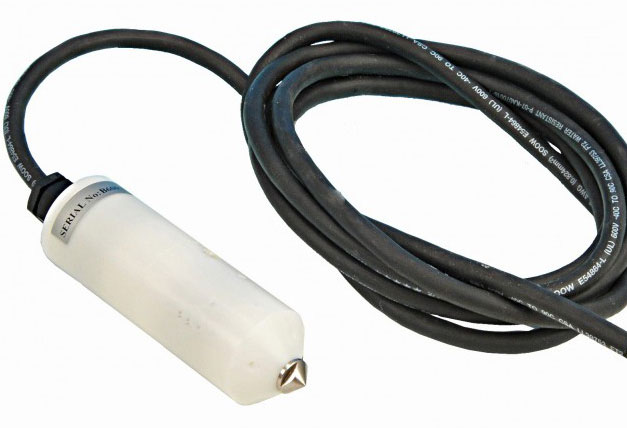

CP Probe

Cathode Potential Probe with either contact or proximity probe options available.

Deployment Systems & Control Cabins

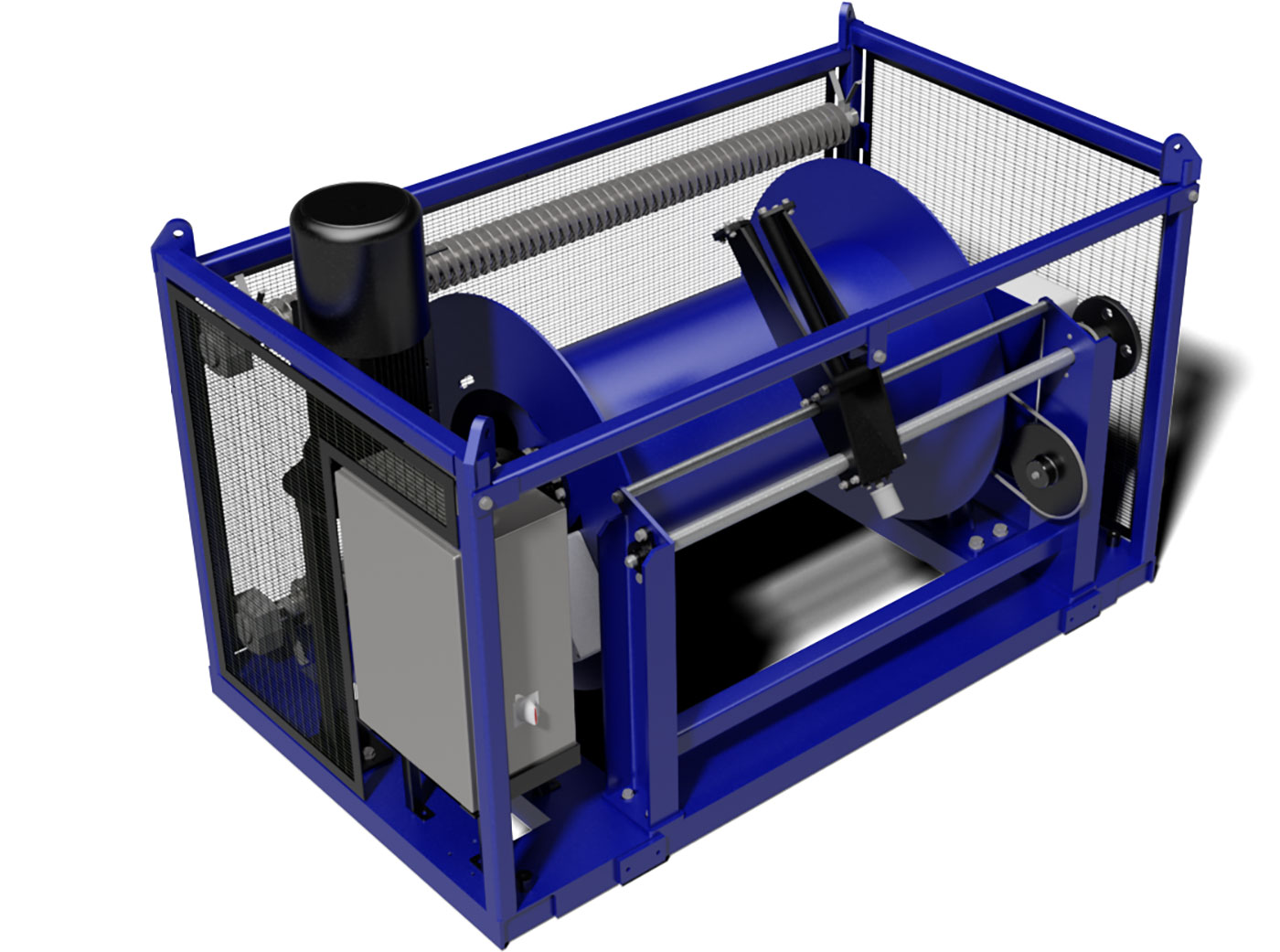

Mk6 Winch

Electric Winch with variable speed and directional control. The winch has a capacity of 1,100m of 14mm diameter umbilical.

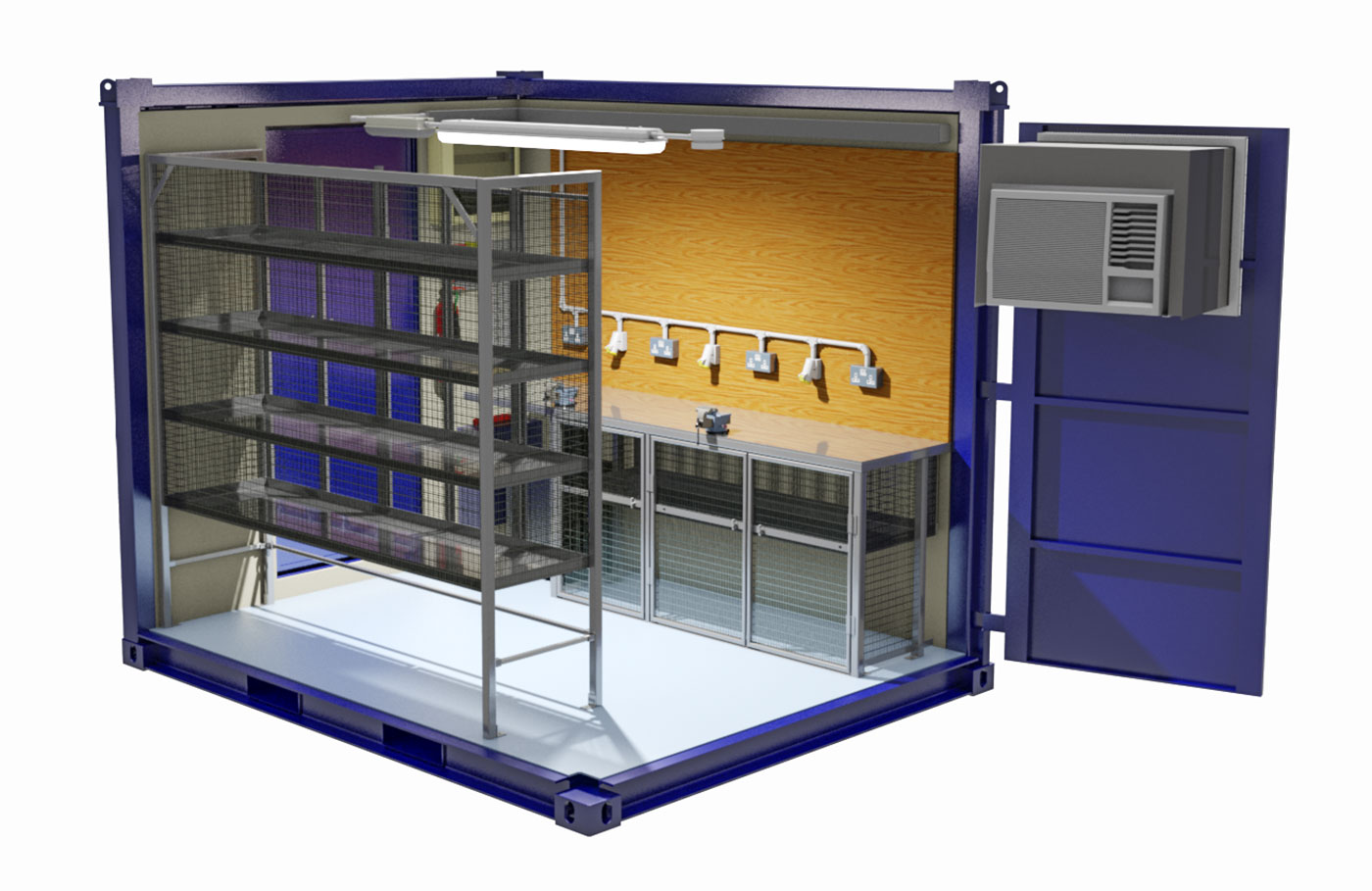

Workshop

Additional cabin options include: 10 ft standalone workshop.

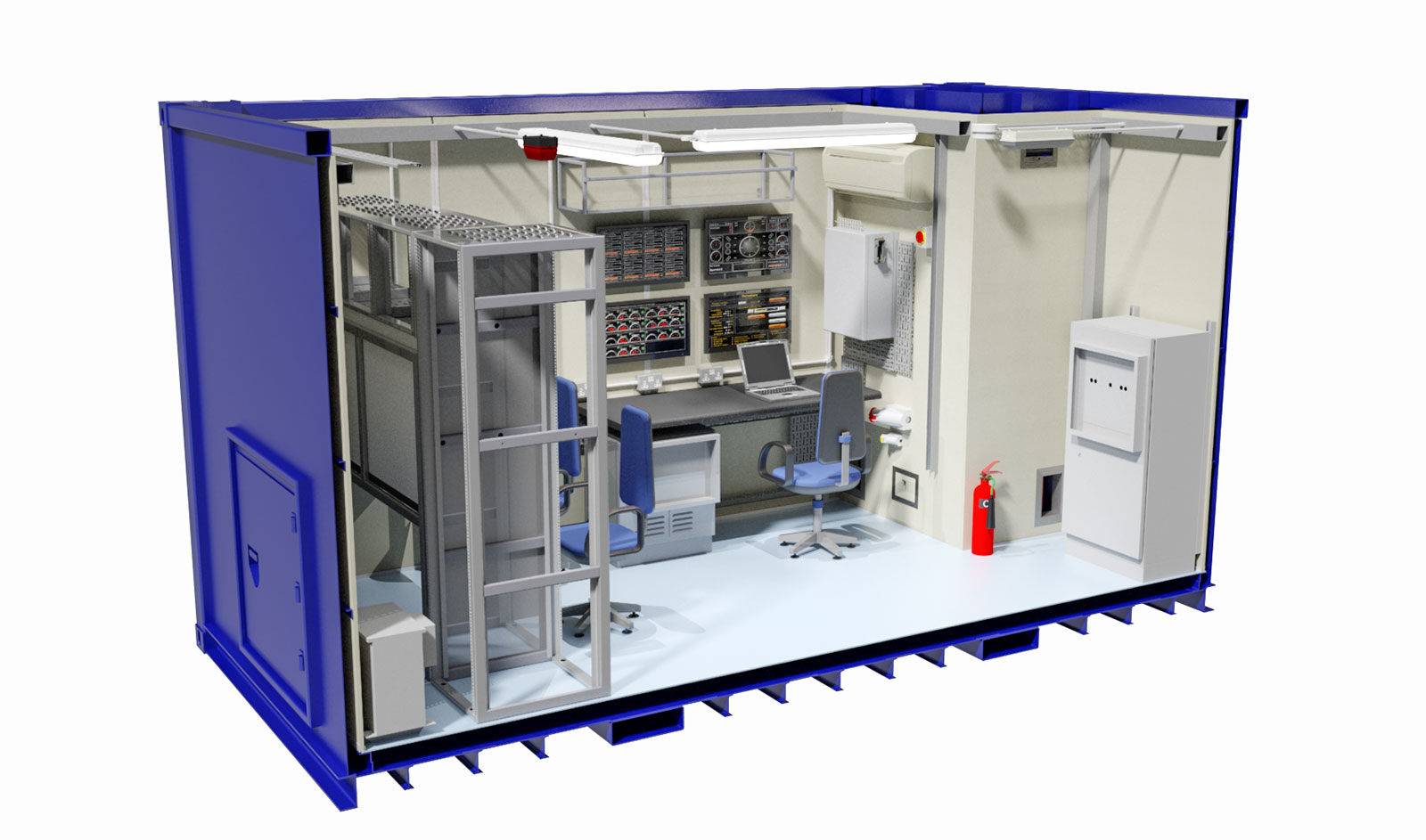

Safe Area Cabin 16ft

Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.

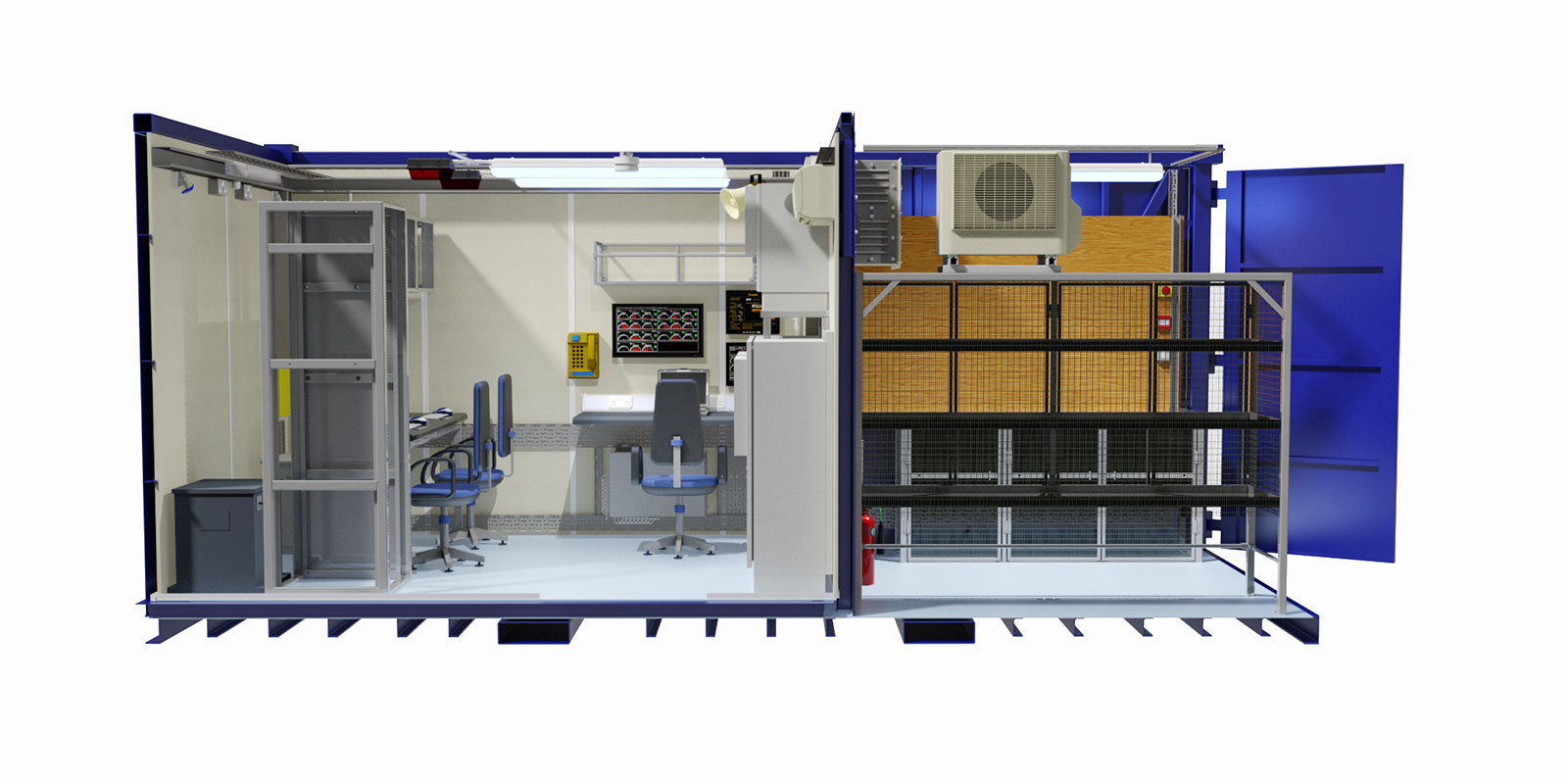

Split Cabin

Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.

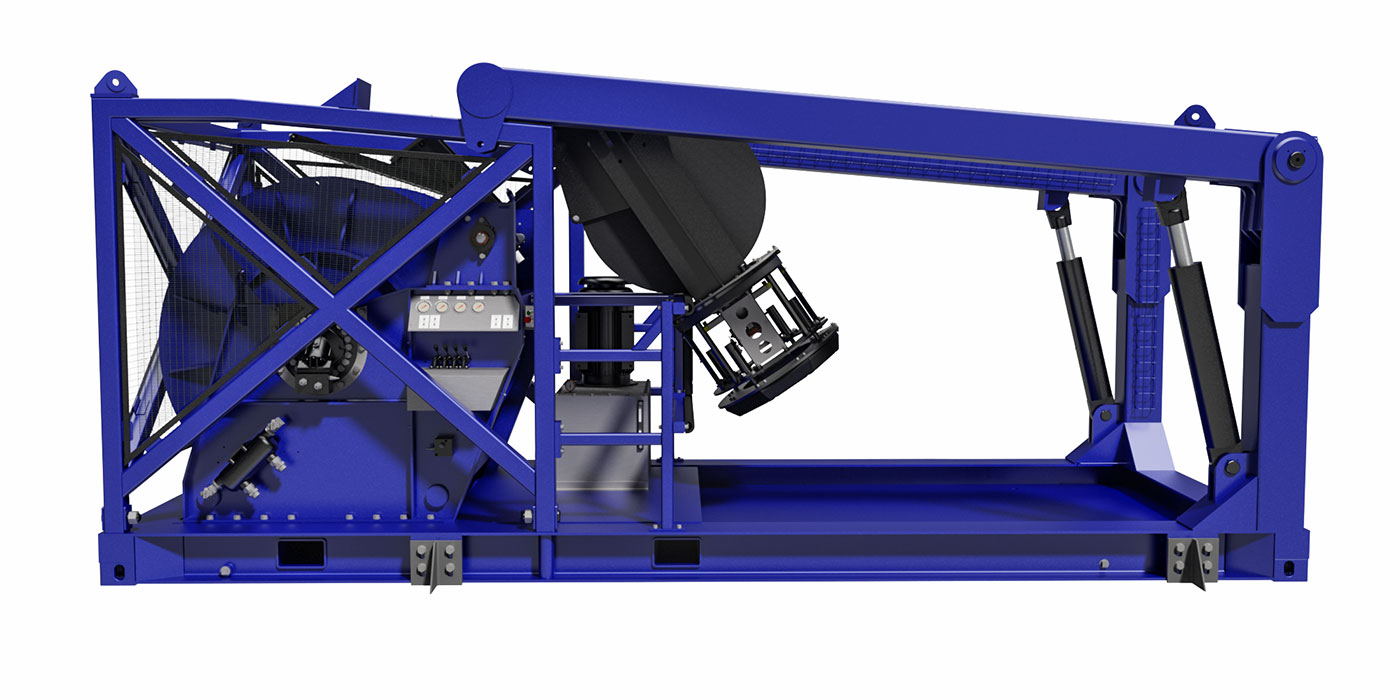

LARS

A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.

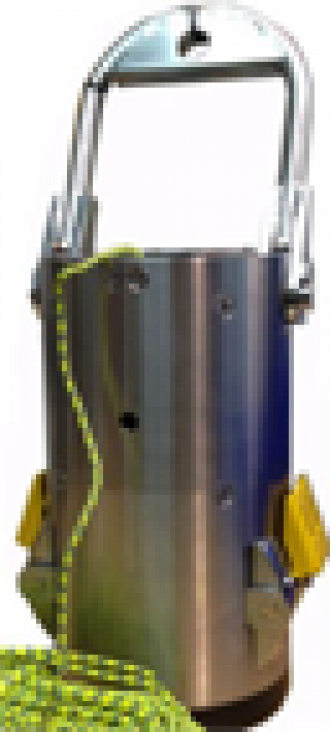

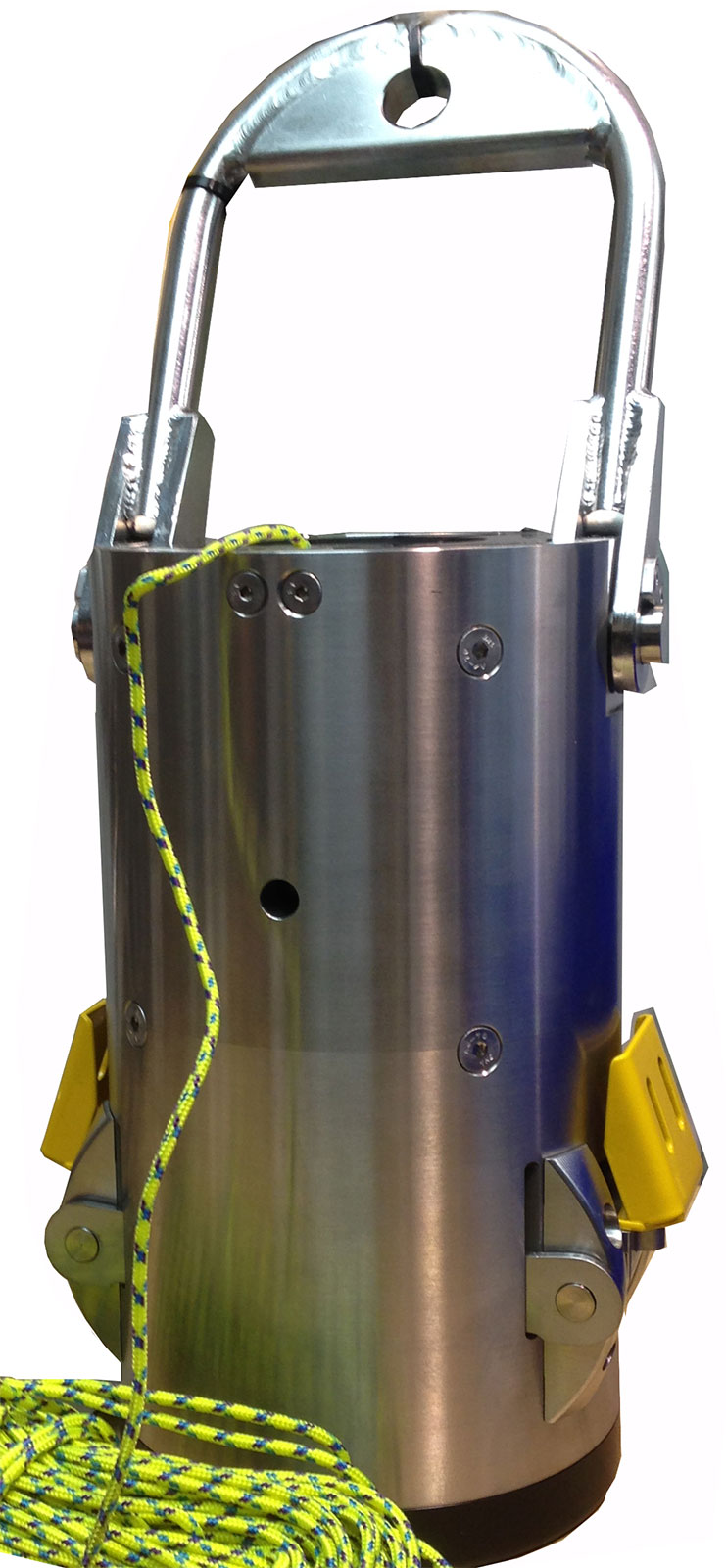

Latch02

Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.
