Tiger

The industry benchmark inspection and observation vehicle.

Brochure

Widely regarded as the leading observation and inspection vehicle within the oil and gas industry, the Tiger is also increasingly chosen by defence and marine science seeking increased capability in deep water.

The Tiger is a very stable platform, with excellent manoeuvrability and performance in strong currents. Its open frame construction and generous payload offer the possibility of adding a wide range of tools and sensors as well as interchangeable tool skids.

The Tiger is available as a free-swimming vehicle down to depths of 450m. For greater depths down to 1000m, a Tether Management System (TMS) is available.

Powerful

Five thrusters provide a stable platform for observation, inspection and diver support.

Reliable

Internationally regarded as the industry standard observation and inspection vehicle.

Flexible

Engineered design options to deliver results even for the most challenging of projects.

Tiger Overview
  • Surface Power Supply Unit and Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container. An additional tooling power supply option is available.

  • Surface Equipment includes Hand Control Unit, keyboard and a 19 inch colour monitor. An additional hand control unit is available for systems fitted with a manipulator skid.

  • Standard Twisted Pair or Fibre Optic option used for data and video transmission.

  • Operated as a free swimming ROV with up to 450 m of umbilical. Optional Type 2 Tether Management System (TMS) available for depths up to 1000 m.

  • Additional deployment options include an electric winch for free swimming Tigers, a containerised system with winch and launch davit or an A Frame Launch and Recovery System (LARS) for ROVs equipped with a TMS.

  • ROV rated to 1000 m fitted with four horizontal thrusters and one vertical thruster, electronics pod, two LED lights, a compass and a depth sensor for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted.

  • With a 32kg payload, a wide range of accessories can be added as required.

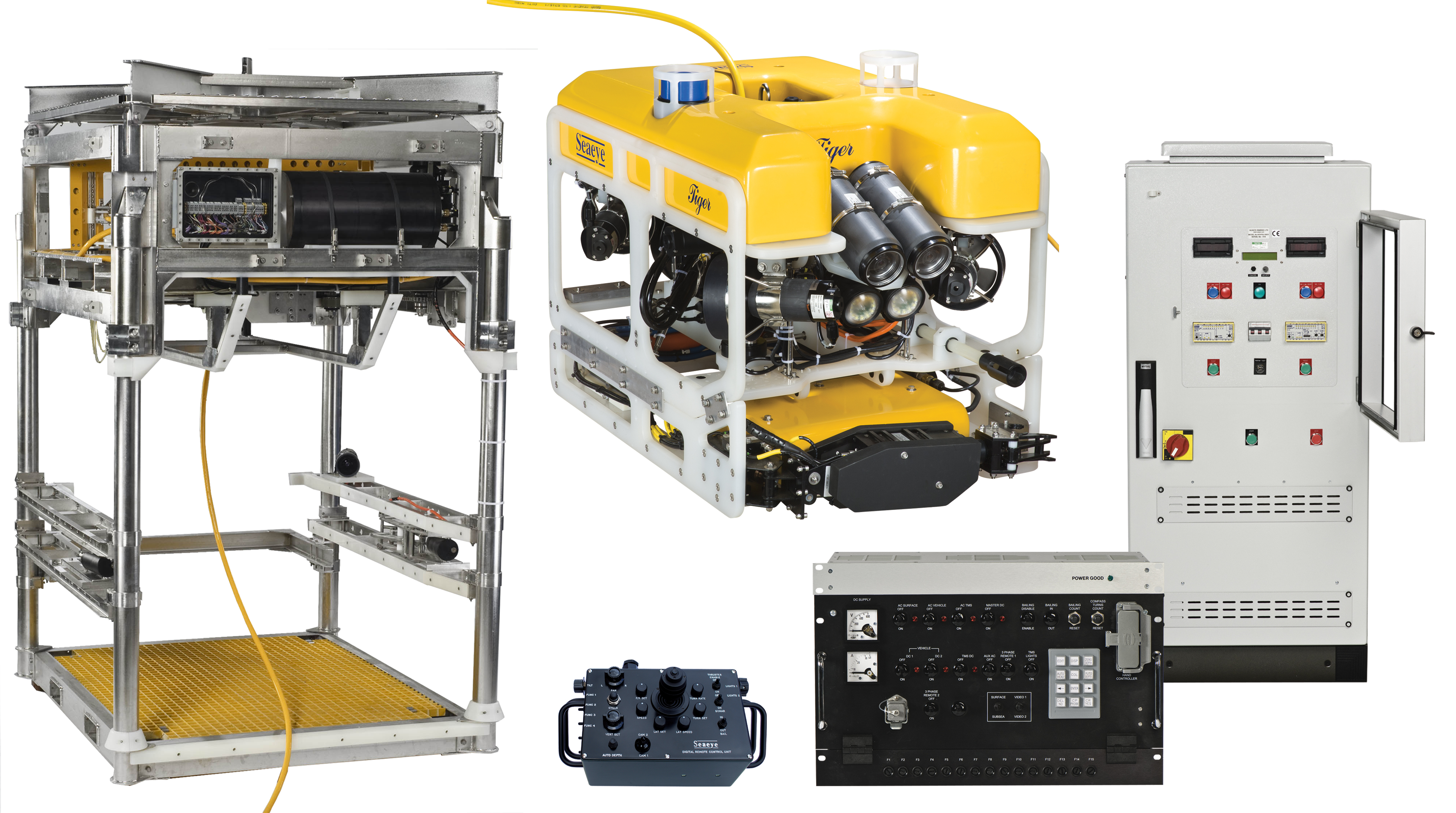

Tigermontage

Technical Specifications
Specification
Tiger

Depth Rating (msw)

 1000

Dimensions



Length (mm)

 1030

Height (mm)

 590

Width (mm)

 700

Weight in air (kg)

 150

Payload (kg)

 32

Thrust



Forward (kgf)

 62

Laterial (kgf)

 43

Vertical (kgf)

 22

Speed (knots)

 3

Power



Power input phases

 3

Voltage (VAC)

 380-480

Option

 690

Frequency (Hz)

 50-60

Battery Capacity (kWh)

 N/A

Endurance (Hour)

 N/A

Options, Tools and Accessories
HLK-33800 Cutter

Compact cutter for cutting 25 mm diameter steel wire rope or 12 mm diameter steel bar.

9kW Tooling PSU

Additional three-phase power supply unit used to power tooling options.

Video Recording System

Control cabin options include video recording unit, video matrix switcher, communications system and high-back pilot seat.

Acoustic Tracking System

Acoustic tracking system to calculate position of vehicle fitted with an acoustic beacon.

Strobe

Battery-operated, Xenon emergency strobe used to locate vehicle. (ST6K)

Laser

Laser options for video survey.

Ultrasonic Thickness Gauge

Ultrasonic thickness gauge to determine the level of corrosion present in a structure.

Multibeam Sonar

Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.

Scanning Sonar

Scanning Sonar options with an integration kit and surface equipment.

Bathymetric System

Bathymetric system with depth sensor and altimeter. Ethernet options available.

Altimeter

Altimeter used to measure the altitude of vehicle above sea floor. Auto altitude option available. (PA200)

Camera

High resolution colour or monochrome cameras fitted to vehicle and on optional TMS. (OE15-100)

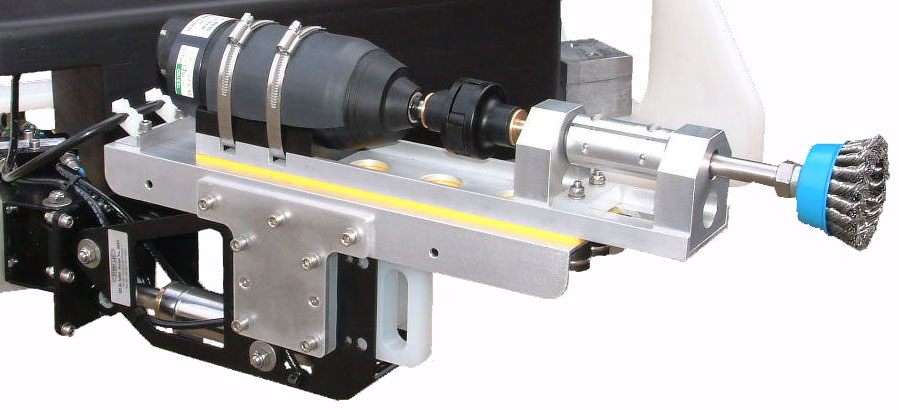

SM4 Cleaning Brush

Cleaning brush incorporating a heavy duty brush plus an SM4 motor.

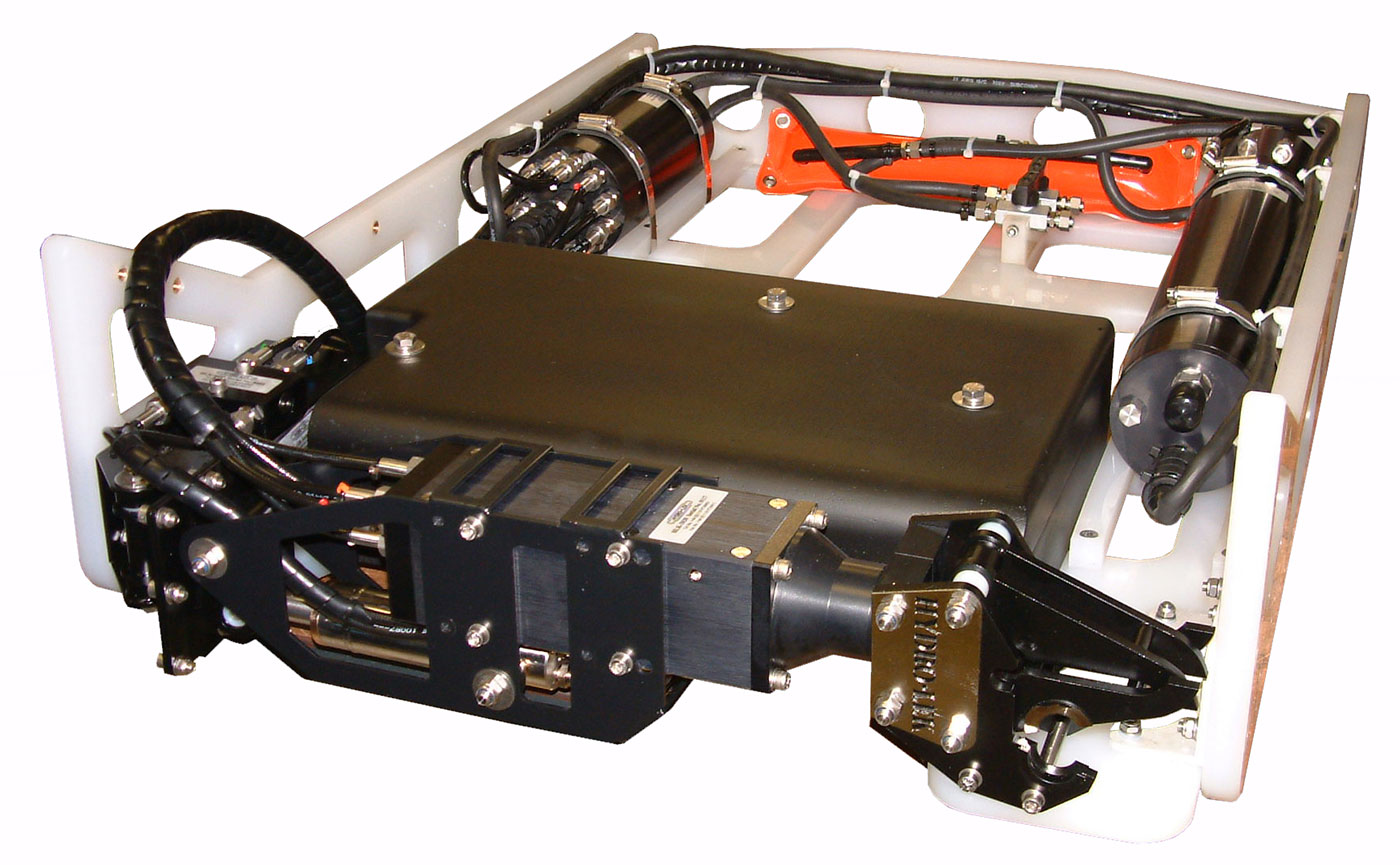

Tiger Manipulator Skid

Four-function manipulator system fitted with a jaw rotate actuator and powered by hydraulic cylinders. Manipulator camera options available.

CP Probe

Cathode Potential Probe with either contact or proximity probe options available.

Deployment Systems & Control Cabins
Workshop

Additional cabin options include: 10 ft standalone workshop.

Safe Area Cabin 16ft

Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.

Split Cabin

Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.

LARS

A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.

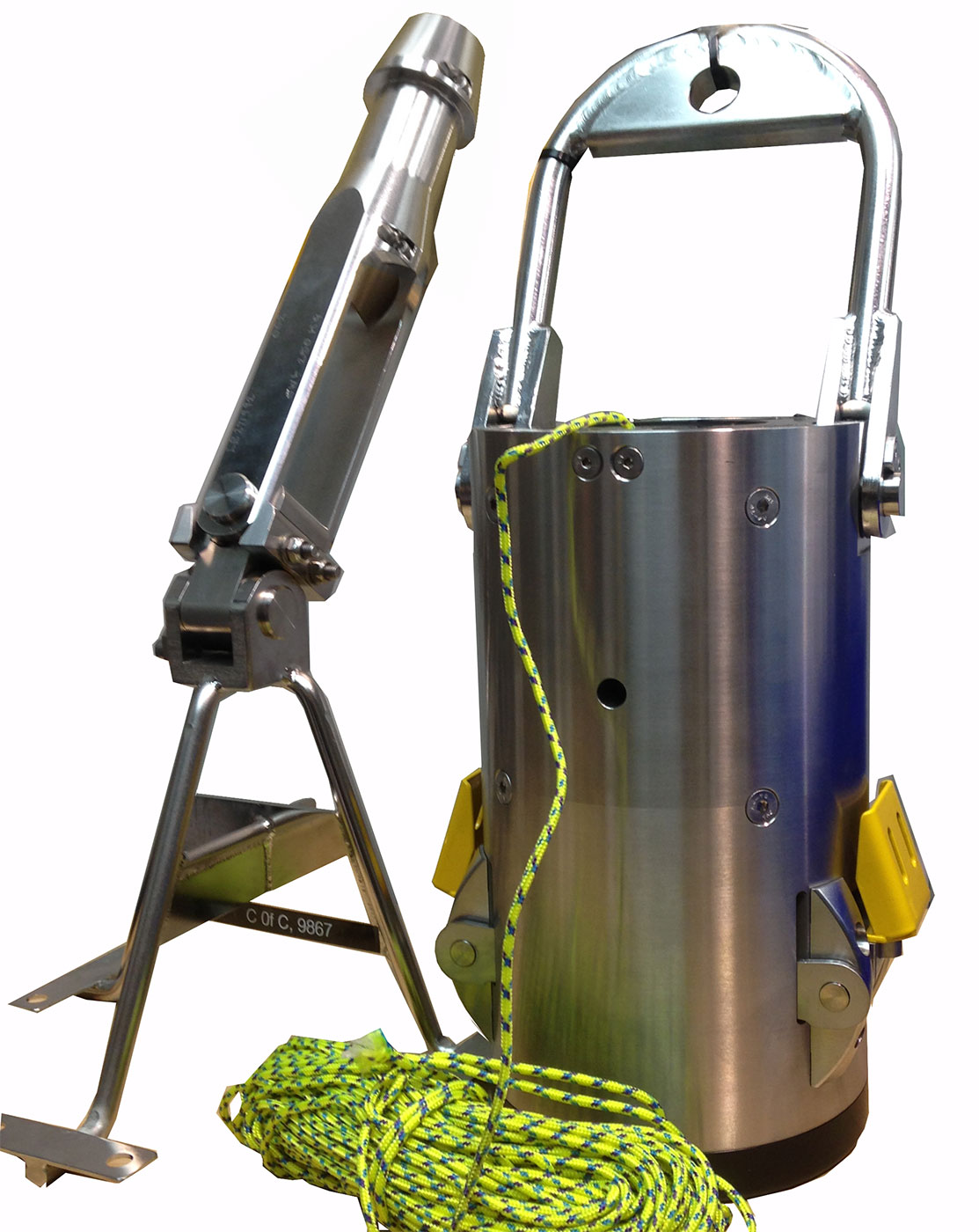

Latch02T

Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.

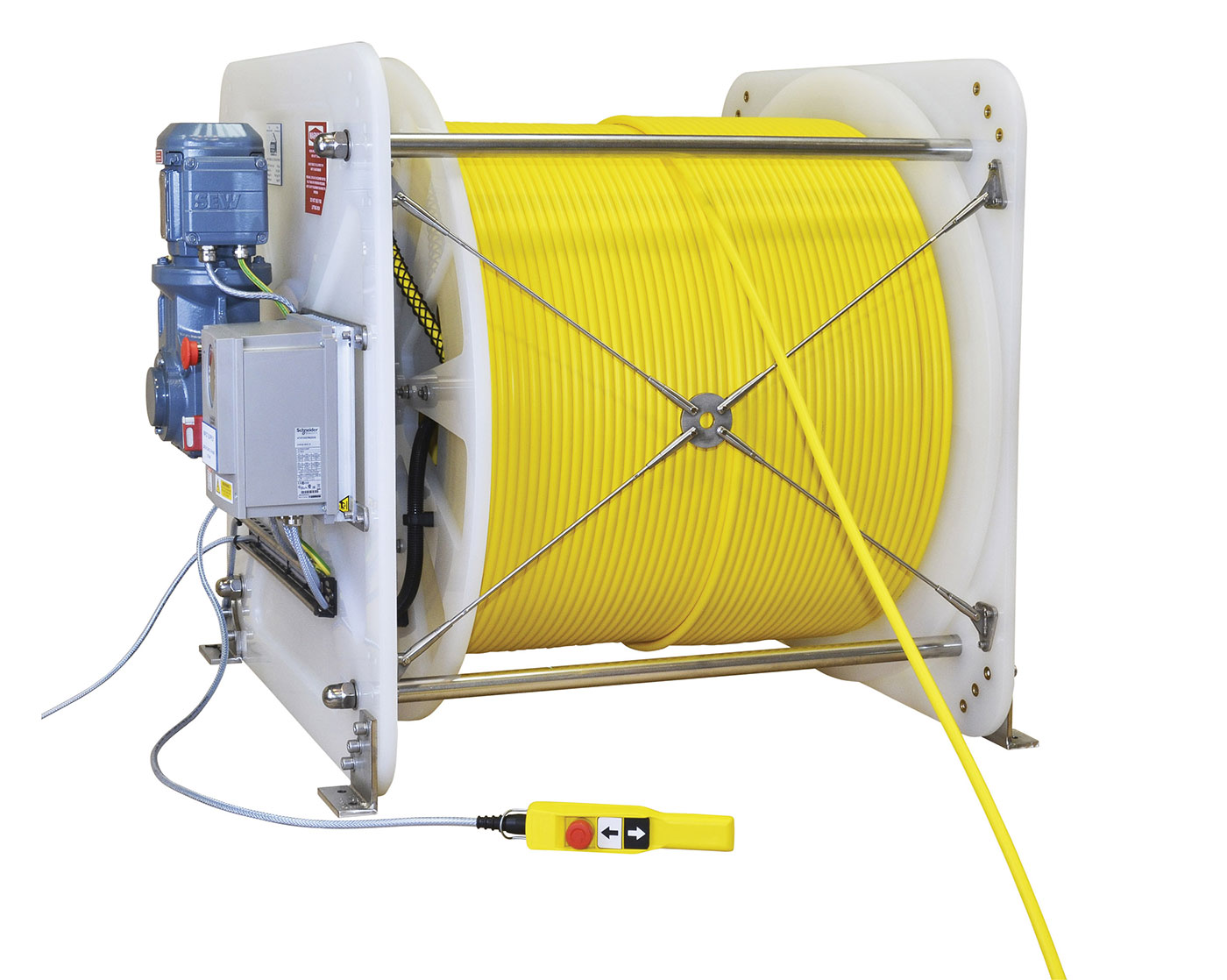

Mk8 Winch

Electric Winch with variable speed electric drive. The winch has a capacity of 1,100m for a 14mm diameter umbilical.

TMS2T

Tether Management System (TMS) Type 2 allowing deployment of the ROV at a deeper working depth and also providing protection.

‘Chosen (along with a Falcon) for their versatility and reliability and power to cope with currents.’



DCNS
Nicolas Leluan
Far East Managing Director

‘Chosen (along with a Falcon) for their versatility and reliability and power to cope with currents.’



DCNS
Nicolas Leluan
Far East Managing Director

‘An ideal design for general inspection tasks and drill support in terms of size and observation capability.’



BLUESTREAM
Rolf de Vries
Managing Director

‘An ideal design for general inspection tasks and drill support in terms of size and observation capability.’



BLUESTREAM
Rolf de Vries
Managing Director

‘Reliability is key for the health of our operators (in the nuclear industry). We wanted a proven robotic vehicle.’



SELLAFIELD NUCLEAR POWER STATION
Phil Toomey
Technical Manager

‘Reliability is key for the health of our operators (in the nuclear industry). We wanted a proven robotic vehicle.’



SELLAFIELD NUCLEAR POWER STATION
Phil Toomey
Technical Manager
