HLK-33600

Circular Disc Cutting Tool

View Data Sheet
Back to all products

Features

  • Self-contained grab, feed and cut unit
  • Capable of cutting pipe, cable or grout hose
  • Up to 110mm cutting capacity
  • Can be mounted via a slew bracket or held in a manipulator via a suitable handle
  • Can accommodate any types of cutting discs up to 355mm in diameter (Bonded abrasive, steel etc.)

Product Overview

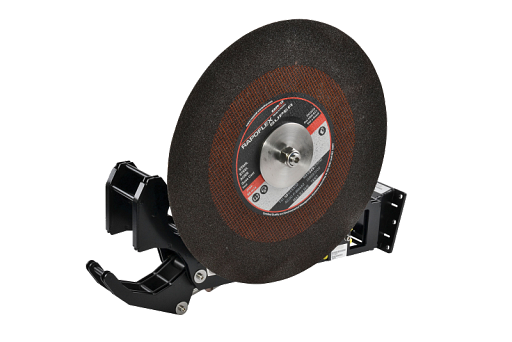

The HLK-33600 is a self-contained grab, feed and cut unit using a 335mm cutting disk and facilitates cutting of steel pipe, cable or grout hose of diameters up to 110mm.

When used with light duty work class vehicle types, the tool can be mounted to a slew bracket similar to that used on a manipulator or camera boom product, or can be held in a manipulator when operated on larger work class vehicle types.

General Specifications

Materials
316 Stainless Steel
Product Finish
Painted
Ports
1/8" & 1/4" BSPP (ISO 1179)
Dimensions
(L) 586mm x (H) 458mm x (W) 220mm (23" x 18" x 8.7")
Weight in Air
15kg (33lb)
Weight in Water
13kg (28.6lb)
Jaw Opening
110mm (4.3”)
Cutting Disc Size
355mm (14”)
