Features
- Manufactured from corrosion resistant materials
- Stroke lengths of 65mm or 100mm as standard
- Two standard rod end types are available
- Hydraulic ports are 1/8” BSPP (ISO 1179) and located at the rear of the cylinder
Product Overview

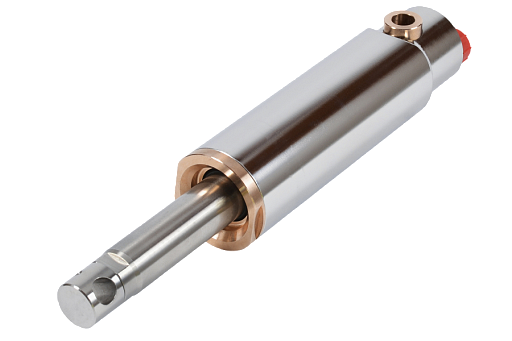

The C01 & C02 series hydraulic cylinders are low cost general purpose products designed for use subsea use on ROV’s, manipulators, hydraulic tooling and other submersible hydraulic systems.
The cylinders are manufactured from corrosion resistant materials and are available in a stroke lengths of either 65mm or 100mm. Two types of rod ends are available or can be supplied without to allow the customer to connect to the M10 thread in the rod end.
General Specifications
Cylinder Type
Double Acting
Seal Material
Nitrile/NBR/Buna-N
Product Finish
Electro Polished
Ports
1/8” BSPP (ISO 1179)
Piston Diameter
C01 = 30mm C02 = 35mm
Rod Diameter
C01 = 19.05mm C02 = 19.05mm
Area Ratio
C01 = 1.67 C02 = 1.42
Dimensions
Stroke Lengths = 65mm (2.56”) or 100mm (3.93”) Contact Office for details
Weight in Air
C01 = 1.25kg (2.75lb) Nominal C02 = 1.62kg (3.57lb) Nominal
Weight in Water
C01 = 1.04kg (2.29lb) Nominal C02 = 1.34kg (2.95lb) Nominal
