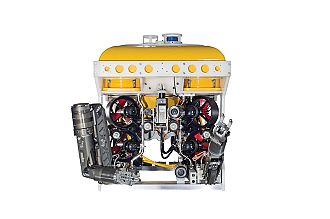

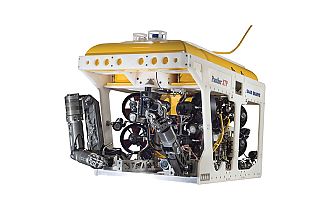

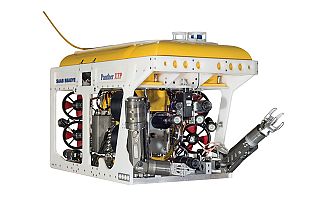

Panther-XT Plus

The high current shallow water survey and light work vehicle.

The Panther-XT Plus is a 1000m rated ROV fitted with ten 500 VDC thrusters; eight horizontal and two vertical with the option of a third vertical thruster provide the Panther XT Plus with exceptional handling and speeds of up to 4 knots.

The high powered Panther-XT Plus accommodates two Schilling Orion manipulators plus a wide range of sensors and heavy duty tooling skids. Tasks include drill support, pipeline survey, IRM, and salvage.

The Panther-XT Plus is available as a free swimmer or is used in conjunction with a Tether Management System (TMS) and an A Frame Launch and Recovery system (LARS). Surface Equipment is available as either free standing units or integrated into a control cabin.

Brochure

Performance

With ten powerful thrusters and a high payload, the Panther-XT Plus has exceptional handling and a speed of 4 knots while still maintaining a small footprint.

Versatile

Designed to fit a range of survey and heavy duty tooling options, which are fitted within the ROV.

Industry Proven

Panther-XT Plus has an excellent record as a light work and survey ROV working in shallow water and in high current conditions.

Panther-XT Plus Overview
  • Two Surface Power Supply Units and a Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container.

  • Surface Equipment includes Hand Control Unit, keyboard and two colour monitors. An additional hand control unit is available for systems fitted with a manipulator skid.

  • Cabin Junction Box for connections between the surface and subsea. Includes Fibre Optic MUX with video and data connections. Additional MUX options available.

  • Available as a free swimming ROV or in conjunction with a Type 8 Tether Management System (TMS) for depths up to 1000 m.

  • ROV rated to 1000m fitted with eight horizontal thrusters and two vertical thrusters supplied with 500 Volts DC. ROV is fitted with two electronics pods; a main and an auxiliary. The main pod provides interfaces for four LED lights, up to four cameras, a depth sensor and a solid state compass (located inside the main electronics pod) for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted. Several versions of the auxiliary pod are available to meet specific customer's requirements.

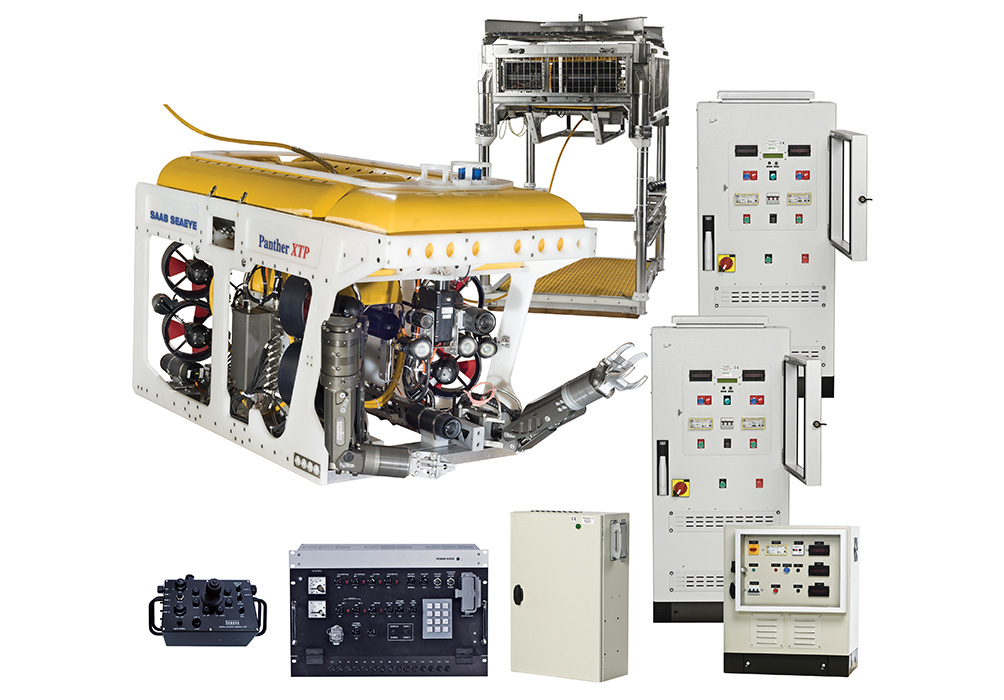

PantherXTP_montage

Technical Specifications
Specification
Panther-XT Plus

Depth Rating (msw)

 1000

Dimensions



Length (mm)

 2140

Height (mm)

 1217

Width (mm)

 1060

Weight in air (kg)

 800

Payload (kg)

 150

Thrust



Forward (kgf)

 353

Laterial (kgf)

 248

Vertical (kgf)

 105

Speed (knots)

 >4

Power



Power input phases

 3

Voltage (VAC)

 380-480

Option

 690

Frequency (Hz)

 50-60

Battery Capacity (kWh)

 N/A

Endurance (Hour)

 N/A

Options, Tools and Accessories
Rotary Cutter For 4 Inch

Rotary Cutter used in for cutting through hoses and cables up to 4 inches thick. Requires a 4kW HPU.

SM7 Cleaning Brush

Cleaning brush incorporating a heavy duty brush plus an SM7 thruster motor.

Water Jet Skid

Water Jet System for cleaning operations. Requires a 3- phase, 4.5 kW power supply unit.

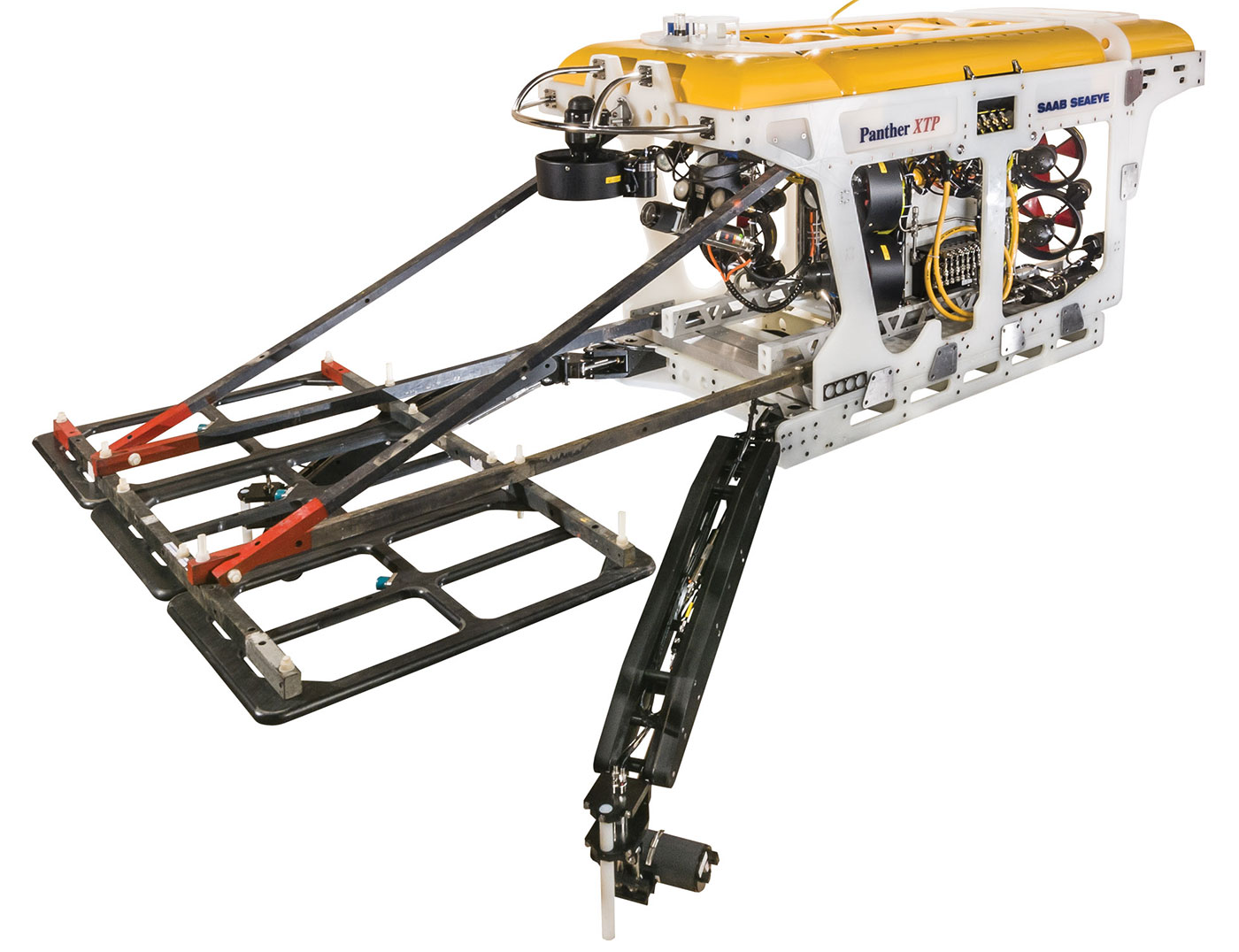

Panther XTP Pipe survey Skid

Pipeline survey wheeled skid with either three or four function camera boom arms. Also camera and LED light options available.

FMD Skid

Flooded Member Detector (FMD) skid for mounting an FMD tool. The skid is fixed below the ROV and is used for subsea inspections.

EdgeDVR

Control cabin options include EdgeDVR video recording unit, Video Matrix Switcher, Communications system, and a high-back pilot seat.

Super SeaKing

Scanning Sonar options with an integration kit and surface equipment.

BlueView Sonar

Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.

HLK-33900 Cutter

Compact Cutter capable of cutting 38 mm diameter steel wire rope. Includes an intensifier and requires a 4kW HPU.

HLK-90150

Additional 4kW HPU and control valve used for additional hydraulic tooling options.

CAM04

High resolution colour or monochrome cameras fitted to either the front of the ROV on the Tilt platform or on a bracket at the rear of the ROV.

OE14-502

High Definition (HD) cameras available for the ROV.

PA200

Altimeter used to measure the altitude of the ROV above the sea floor. Auto Altitude option available.

Tritech Bathymetric

Bathymetric system with depth sensor and altimeter. Ethernet options available for fibre optic Tigers.

CP Probe

Cathode Potential Probe with either contact or proximity probe options available.

ST6K

Battery-operated, Xenon emergency strobe used to locate the ROV.

Ocean Laser

Laser options for video survey.

Cygnus Gauge

Complete Cygnus ultrasonic thickness system available to determine the level of corrosion present in a structure.

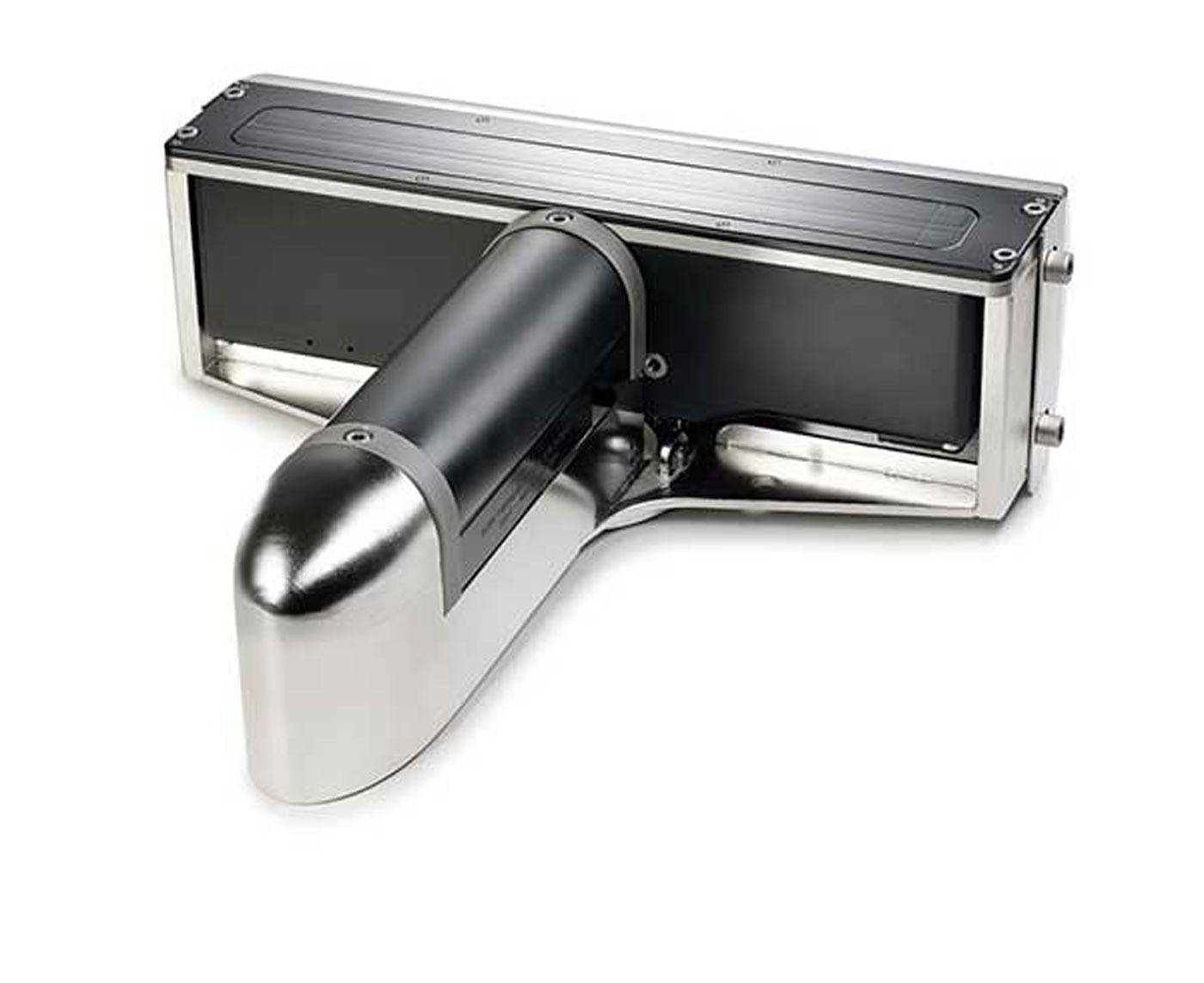

Echosounder Fittings

Dual Multibeam Echosounder (MBES) fitted to a forward frame.

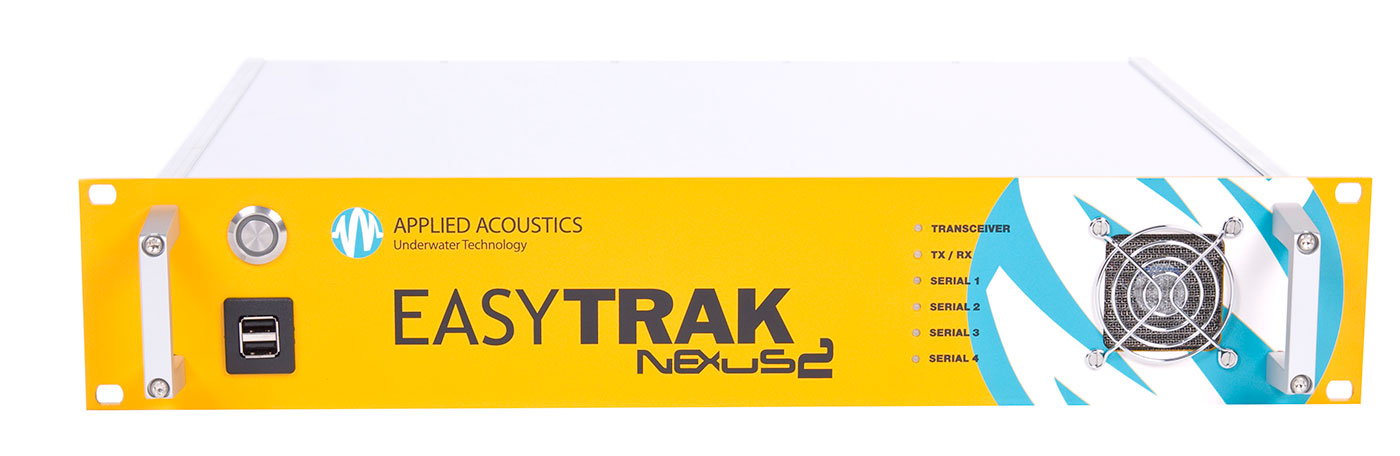

EasyTrak Acoustic System

Complete acoustic tracking system used to calculate the position of the ROV with a fitted acoustic beacon.

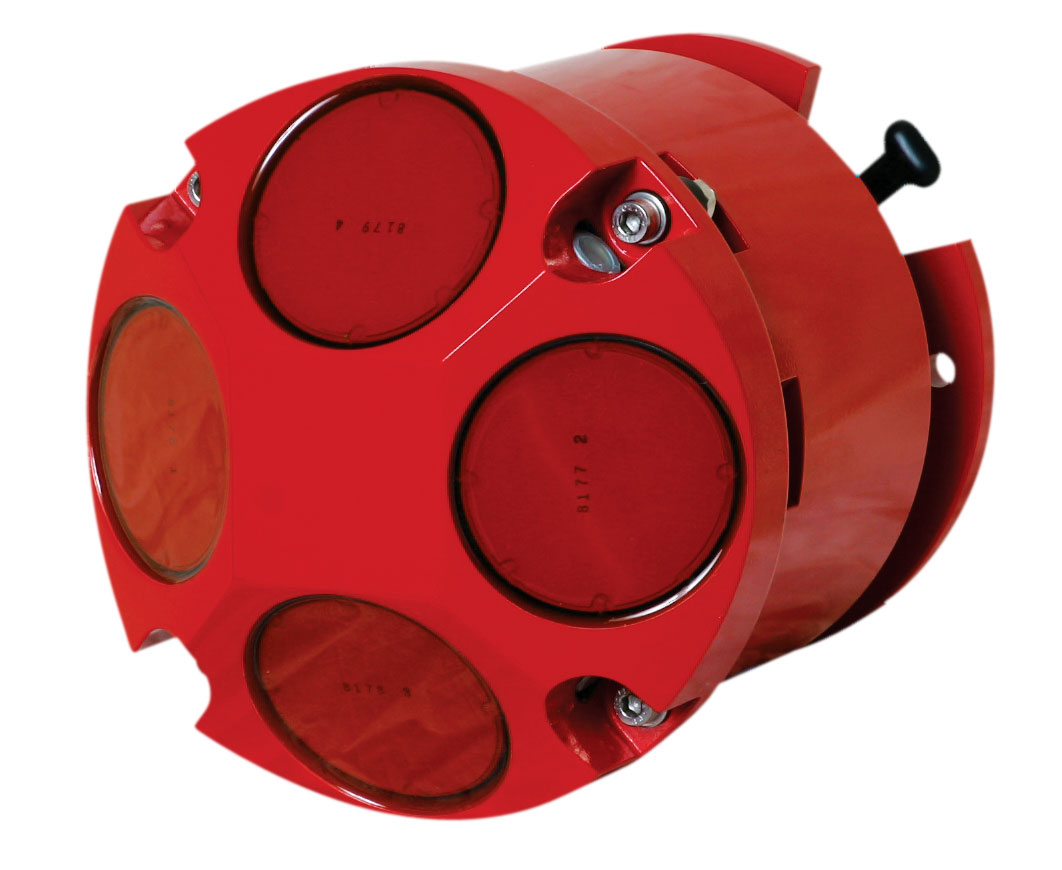

Navigator DVL

Dedicated sled for Inertial Navigation Systems including DVL, Fibre Optic Gyro, Sound Velocity Profiler and depth sensor.

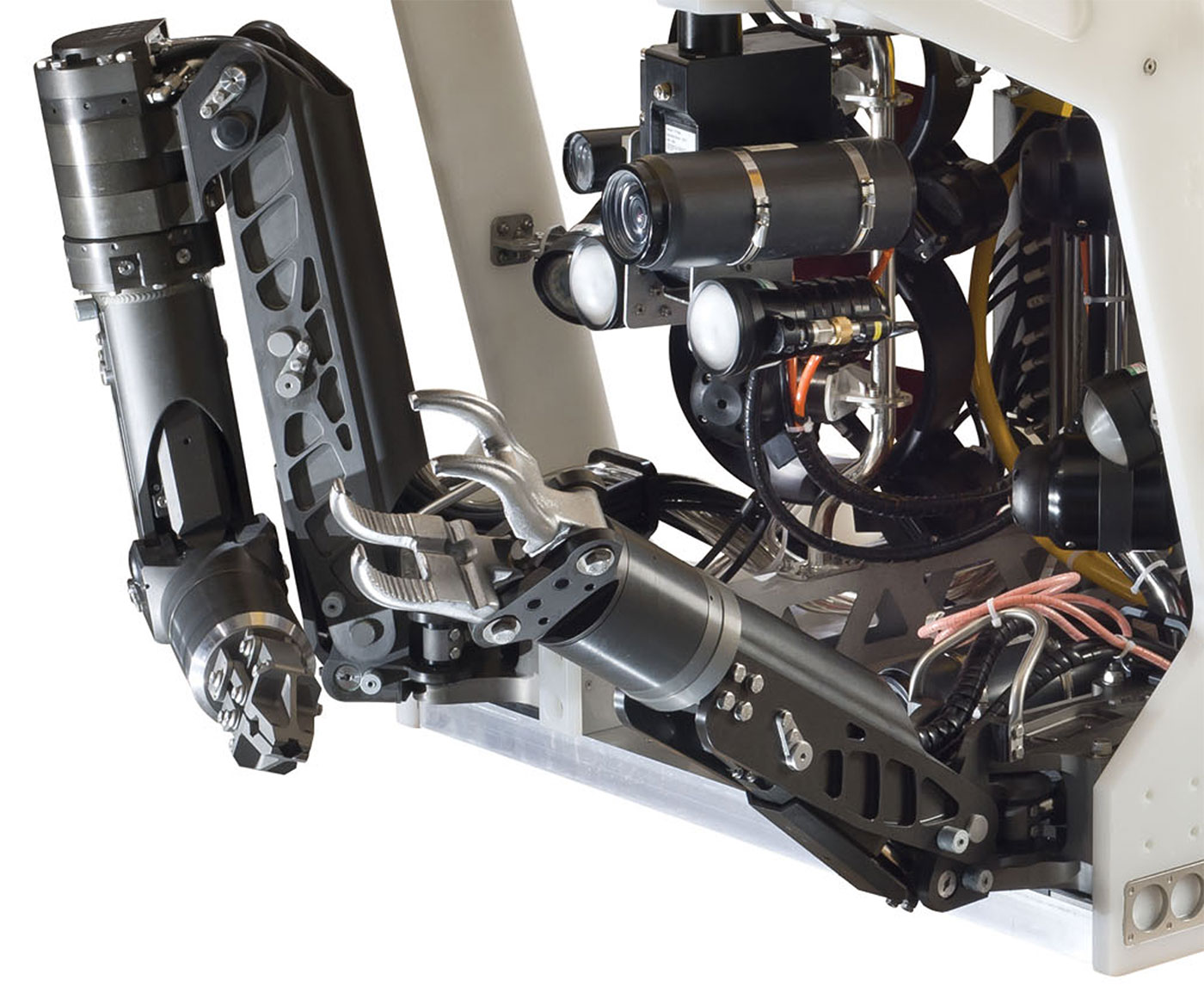

Panther XTP Schilling Manipulator

Schilling Orion 7P and 4R manipulator arms fitted to the ROV. Manipulator camera options available.

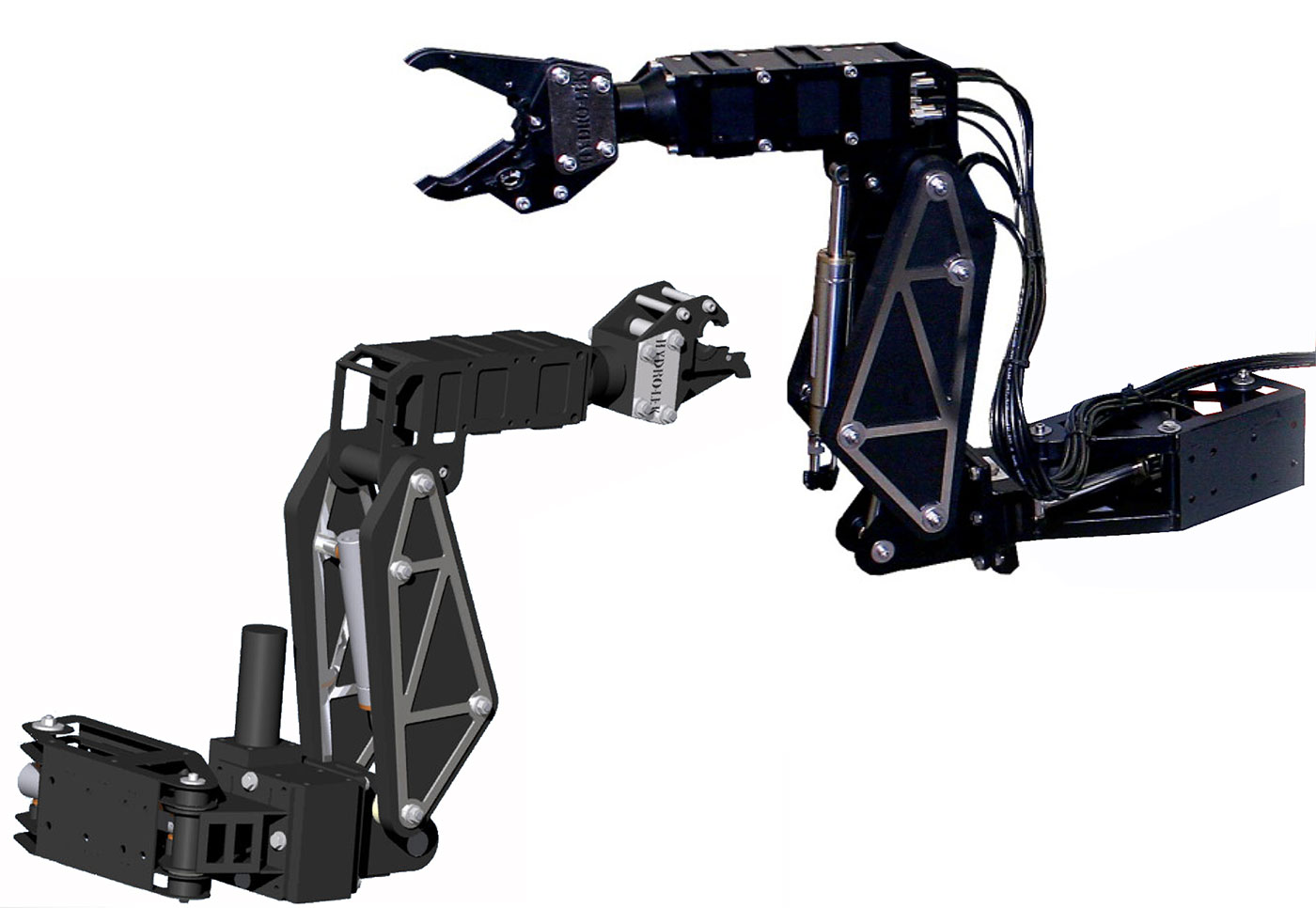

Panther XTP Hydro-Lek Manipulator

Alternative five and six-function heavy duty manipulator system fitted to the ROV chassis. Manipulator camera options available.

9kW Tooling PSU

Additional three phase power supply unit used to power tooling options.

Deployment Systems & Control Cabins
Mk6 Winch

Electric Winch with variable speed and directional control. The winch has a capacity of 1,100m of 14mm diameter umbilical.

LARS

A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.

TMS8

Tether Management System (TMS) Type 8 with 250 m of fibre optic tether allowing for the deployment of the ROV at working depth and also providing protection.

Split Cabin

Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.

Safe Area Cabin 16ft

Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.

Workshop

Additional cabin options include: 10 ft standalone workshop.

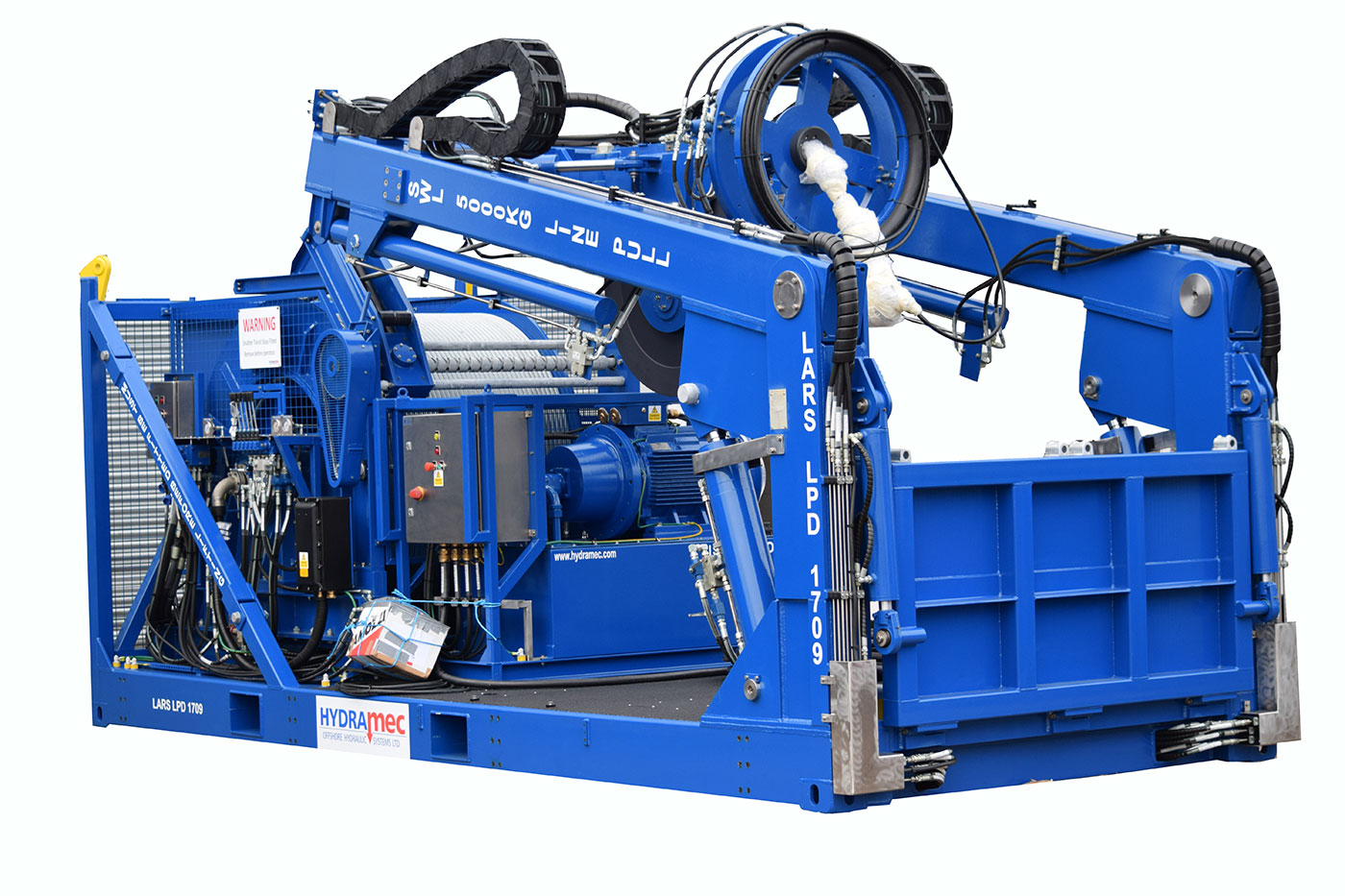

LARS

A-Frame Safe Area Launch and Recovery System (LARS) with 1100, 2200, or 3300m winch capacities. A Zone II upgrade option is available. Optional folding platform for additional work space.

Latch02

Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.

KREUZ SUBSEA

Robert Black
Operations Manager

‘It has incredible strength and unrivalled speed and agility so can swim around divers safely whilst undertaking light construction and work tasks.’

ERIKSSON DIVING

Arne Eriksson

‘It is a powerful and sophisticated platform with an open structure that makes it easy to work on any system. It is a formidable machine.’
