Lynx

The offshore inspection vehicle with enhanced interface capability.

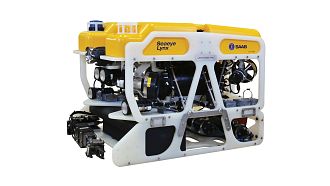

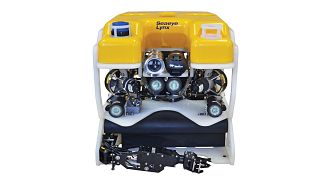

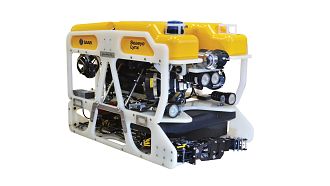

Like the smaller Tiger, the Lynx is a leading observation and inspection vehicle used by the oil and gas industry especially for missions in water depths of up to 1,500m.

The Lynx is fitted with two vertical and four horizontal thrusters making it a very stable platform with exceptional manoeuvrability.

The Lynx offers a wide range of tools and sensors as well as interchangeable tooling skids, which are powered by a dedicated Tooling power supply unit.

The Lynx vehicle is available as a free swimmer or can operate in conjunction with a Type 8 Tether Management System (TMS).

Brochure

Trusted

Six thrusters provide a stable platform with an increase in vertical thrust for deep water and platform inspection projects.

Enhanced Data Transmission

Fibre Optic data and video transmission with up to four simultaneous video channels available including an HD camera option.

Flexible

Tooling options designed to deliver results even for the most challenging of projects.

Lynx Overview
  • Surface Power Supply Unit and Surface Control Unit supplied as free standing units or fitted inside an air conditioned control container. An additional tooling power supply option is available.

  • Surface Equipment includes Hand Control Unit, keyboard and a two 17 inch colour monitors. An additional hand control unit is available for systems fitted with a manipulator skid.

  • Fibre Optic MUX with two live video channels for video transmission. Additional MUX option available.

  • Operated as a free swimming ROV or in conjunction with a Type 8 Tether Management System (TMS) for depths up to 1500 m.

  • Additional deployment options include an electric winch for free swimming Lynx or an A Frame Launch and Recovery System (LARS) for ROVs equipped with a TMS.

  • ROV rated to 1500 m fitted with four horizontal thrusters and two vertical thrusters, electronics pod, four LED lights, two high resolution cameras, a compass and a depth sensor for vehicle auto heading and auto depth. Auto altitude is available as an option when an altimeter is fitted.

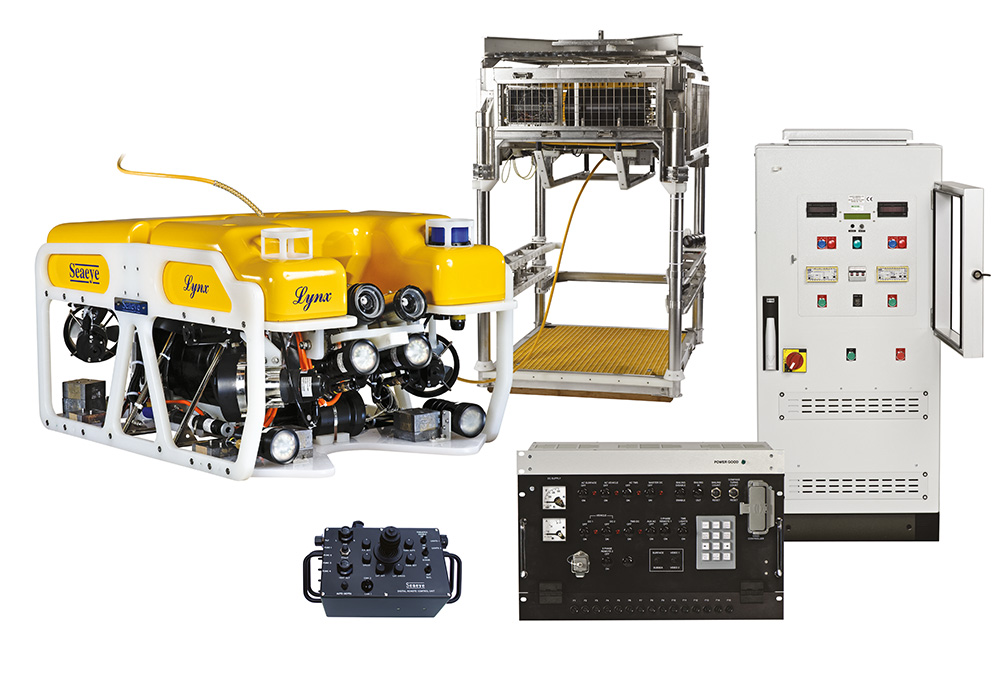

Lynxmontage

Technical Specifications
Specification
Lynx

Depth Rating (msw)

 1500

Dimensions



Length (mm)

 1230

Height (mm)

 605

Width (mm)

 815

Weight in air (kg)

 200

Payload (kg)

 34

Thrust



Forward (kgf)

 66

Laterial (kgf)

 47

Vertical (kgf)

 43

Speed (knots)

 3

Power



Power input phases

 3

Voltage (VAC)

 380-480

Option

 690

Frequency (Hz)

 50-60

Battery Capacity (kWh)

 N/A

Endurance (Hour)

 N/A

Options, Tools and Accessories

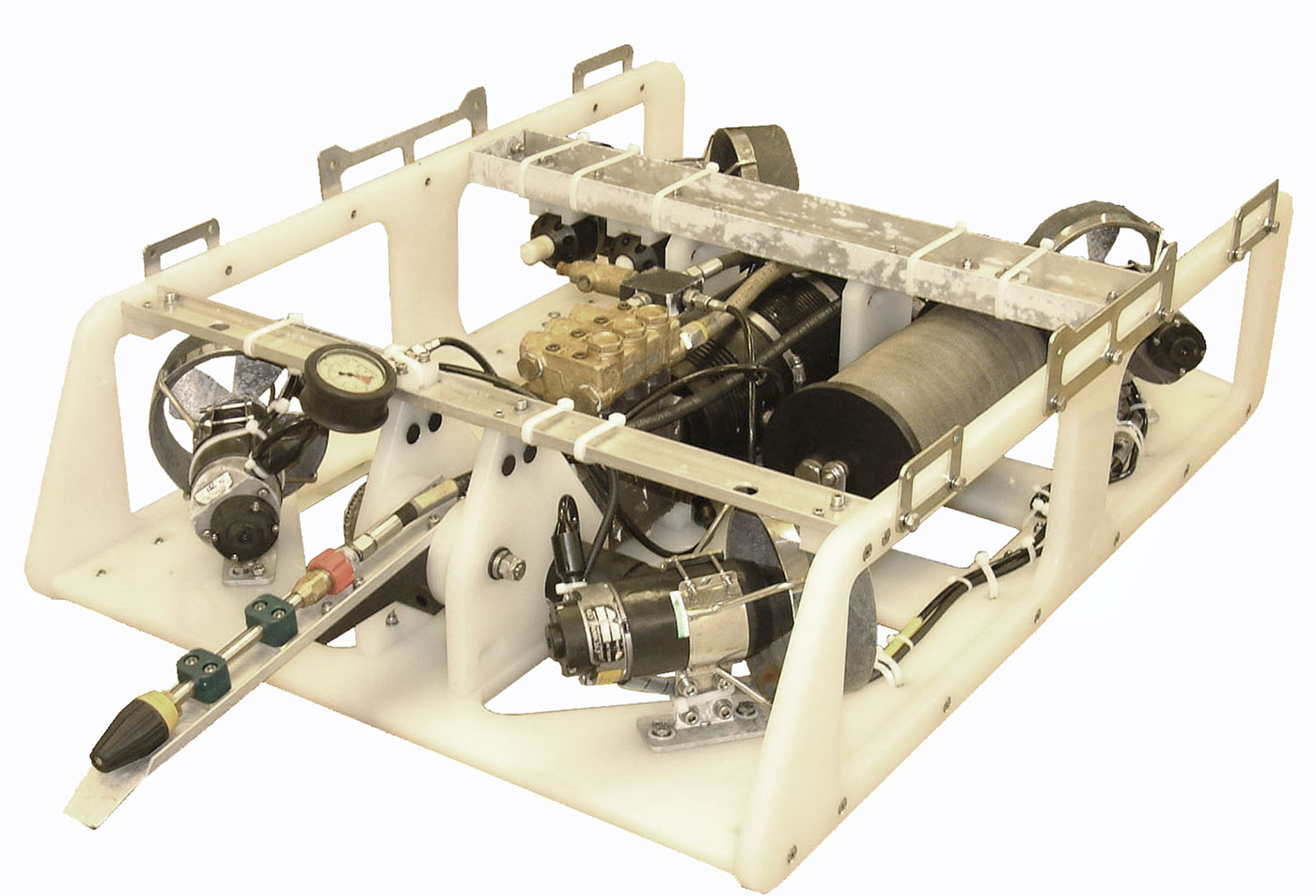

Lynx Water Jet Skid

Water Jet System for cleaning operations. Requires a 3- phase 4.5kW power supply unit.

FMD Skid

Flooded Member Detector (FMD) skid for mounting an FMD tool. The skid is fixed below the ROV and is used for subsea inspections.

EdgeDVR

Control cabin options include EdgeDVR video recording unit, Video Matrix Switcher, Communications system, and a high-back pilot seat.

Super SeaKing

Scanning Sonar options with an integration kit and surface equipment.

BlueView Sonar

Multibeam Sonar options with an integration kit and surface equipment. Ethernet options available for fibre optic vehicles.

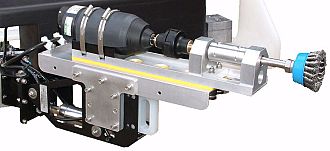

SM4 Cleaning Brush

Cleaning brush incorporating a heavy duty brush plus an SM4 motor.

HLK-33800 Cutter

Compact Cutter capable of cutting 25mm diameter steel wire rope or 12mm diameter steel bar.

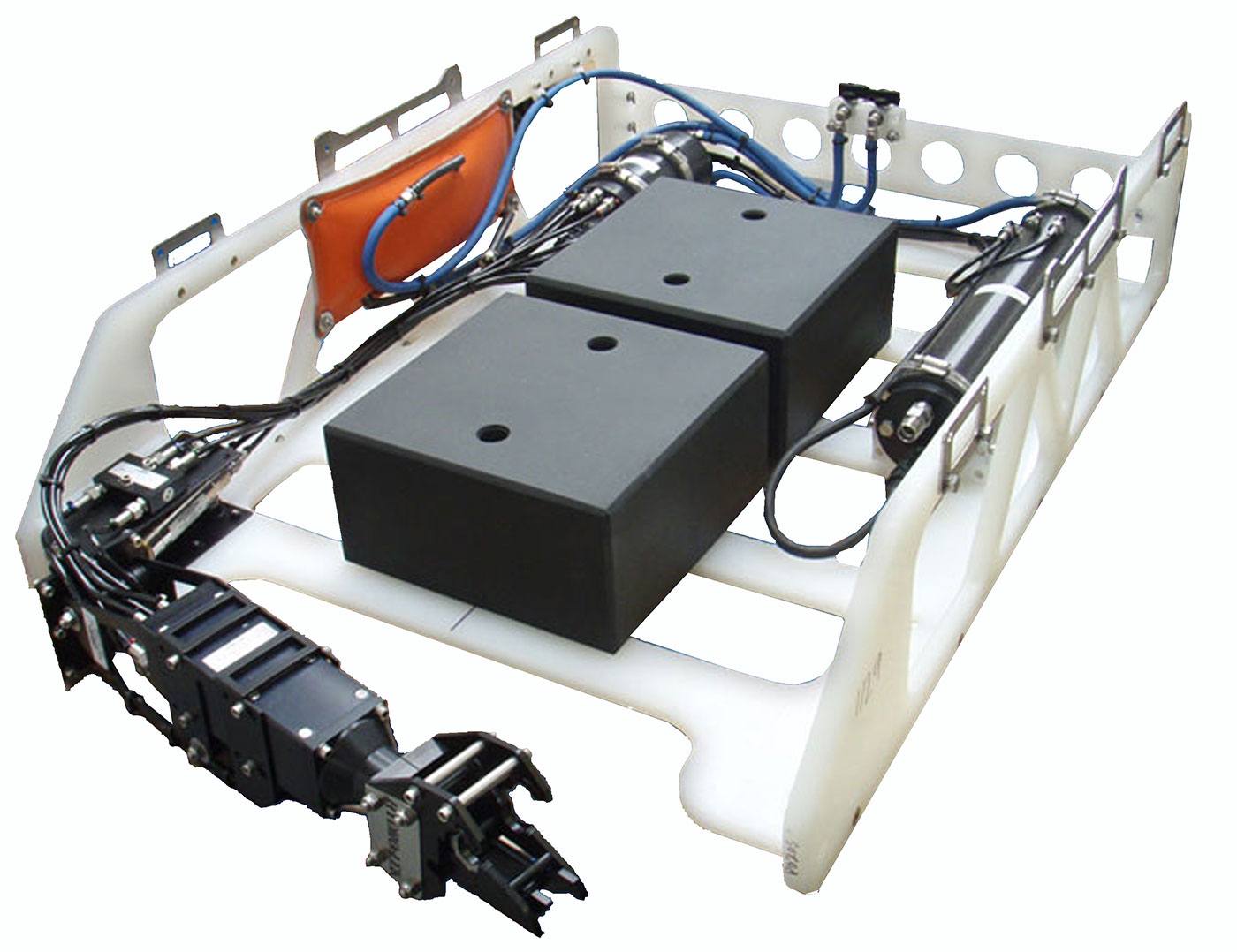

Lynx Manipulator Skid

Four-function manipulator system fitted with quick disconnects fittings to switch between the cleaning brush and the anvil cutter. Manipulator camera options available.

OE15-100

High resolution colour or monochrome cameras fitted to the ROV and on the optional TMS.

OE14-502

High Definition (HD) cameras available for the ROV.

PA200

Altimeter used to measure the altitude of the ROV above the sea floor. Auto Altitude option available.

Tritech Bathymetric

Bathymetric system with depth sensor and altimeter. Ethernet options available for fibre optic Tigers.

CP Probe

Cathode Potential Probe with either contact or proximity probe options available.

ST6K

Battery-operated, Xenon emergency strobe used to locate the ROV.

Ocean Laser

Laser options for video survey.

Cygnus Gauge

Complete Cygnus ultrasonic thickness system available to determine the level of corrosion present in a structure.

AAE Track System

Complete acoustic tracking system used to calculate the position of the ROV with a fitted acoustic beacon.

9kW Tooling PSU

Additional three phase power supply unit used to power tooling options.

Deployment Systems & Control Cabins
Mk8 Winch

Electric Winch with variable speed electric drive. The winch has a capacity of 1,100m for a 14mm diameter umbilical.

LARS

A-Frame Safe Area Launch and Recovery System (LARS) with Lock Latch or Snubber options. A Zone II upgrade option is available.

TMS8

Tether Management System (TMS) Type 8 with 250 m of fibre optic tether allowing for the deployment of the ROV at working depth and also providing protection.

Split Cabin

Safe Area 20ft split Control Cabin with a Pilot Control section and a separate high voltage PSU section. Fitted with electric power distribution panels, lighting, air conditioning, heating and 19 inch racks. An optional installed escape hatch is available as is a Zone II upgrade.

Safe Area Cabin 16ft

Safe Area Control Cabin (16 ft) fitted with electric power distribution panels and air conditioning. A Zone II upgrade option is available.

Workshop

Additional cabin options include: 10 ft standalone workshop.

Latch02

Running Lock Latch system used for launch and recovery to reduce the strain on the umbilical. Includes a latch release line to free the ROV from the lock latch.
